6105 - Male stud couplings

LF 6100 - Lubrication and vacuum systems, Male stud couplings, Brass

From €3.90 *

Available, delivery time:

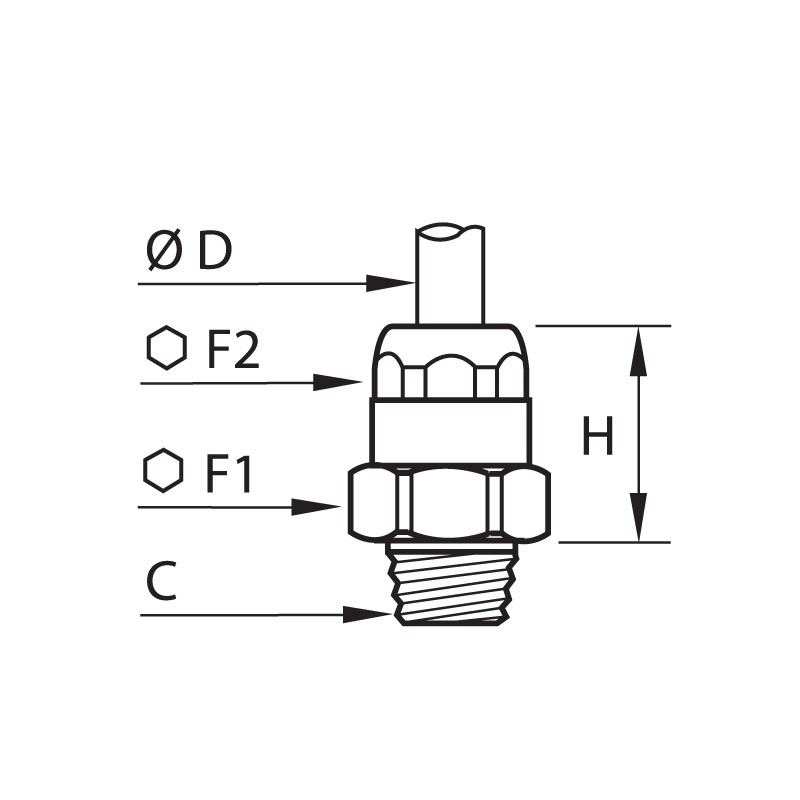

Product name	C	ØD	F1	F2	H	Price		Quantity
6105 04 10 Male stud coupling	R1/8"	4 mm	13	11	14,5	€6.54	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 04 13 Male stud coupling	R1/4"	4 mm	14	11	12,5	€9.25	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 04 52 Male stud coupling	M6x1	4 mm	13	11	16,5	€6.31	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 04 56 Male stud coupling	M8x1	4 mm	13	11	14,5	€6.47	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 04 57 Male stud coupling	M8x1,25	4 mm	13	11	14,5	€10.59	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 04 60 Male stud coupling	M10x1	4 mm	13	11	14,5	€6.54	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 06 10 Male stud coupling	R1/8"	6 mm	17	14	17,5	€8.04	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 06 13 Male stud coupling	R1/4"	6 mm	17	14	16,5	€8.34	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 06 60 Male stud coupling	M10x1	6 mm	17	14	16,5	€7.22	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 06 71 Male stud coupling	M14x1,5	6 mm	17	14	16,5	€3.90	This article is currently not available!
6105 08 65 Male stud coupling	M12x1	8 mm	19	21	24	€26.91	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
6105 10 71 Male stud coupling	M14x1,5	10 mm	22	24	26	€14.79	This article is currently not available!

Product information "6105 - Male stud couplings"

In line connection of tubing to a threaded port. Tightened on the top end of the fitting with a flat spanner or socket wrench. Very solid construction and sealing of tube by 2 O rings. manual connection and disconnection with a flat spanner to secure gripping of tube.Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.

Material:	Brass
max. temperature in °C:	120
min. temperature in °C:	-40
RoHS compliant:	Yes
Material seal:	NBR
Material body:	Brass
Material release button:	Brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
