Product information "Turbine grinder GTV 1100"

  • High speed for excellent finishing quality
  • Easy to service
  • High true running accuracy for long term endurance
  • Ball bearings with floating support to reduce wear of the rotary burrs
  • Non-lubricated use
Exhaust Air: to front
Connection: Plug
Item number: 60069265
Break: No
Noise level in dB(A): 70
Weight without hose in kg: 0,21
Carbide burrs up to max. diam.: 3
Idling speed rpm: 100000
Power in W: 100
Air consumption in l/s: 5,3
Accessories supplied: Wrench
Mounted points up to max. diam.: 5
Hose unit: included
Collet in mm: 3
Valve: Rotary vale
Air supply hose in m: 1,5
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

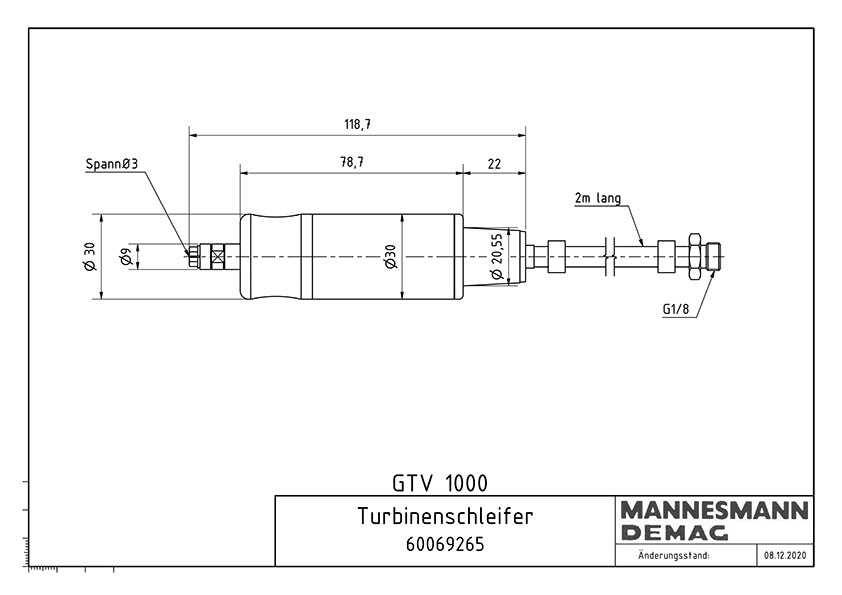

Technische Zeichnung
Diameter in mm: 30
Length in mm: 120
