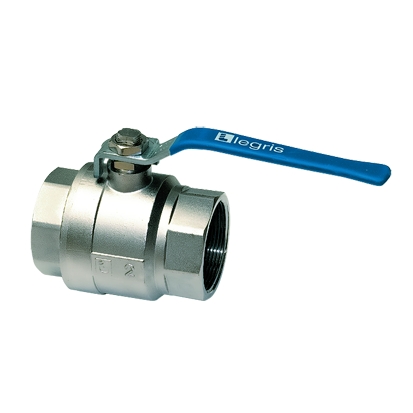

Opening and closing a fluid system. Good resistance to pressure and temperature.
| Bore in mm: | 8 |
| Maximum working pressure in bar: | 40 |
| Material seal: | PTFE |
| Material body: | Brass nickel plated |
| Material lever: | Stahl kunststoffummantelt |
| Material stem: | Brass nickel plated |
| min. temperature in °C: | -40 |
| max. temperature in °C: | 170 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
