4890 - Non-return valves made of stainless steel

To be able to use maku Industrie GmbH & Co. KG in full range, we recommend activating Javascript in your browser.

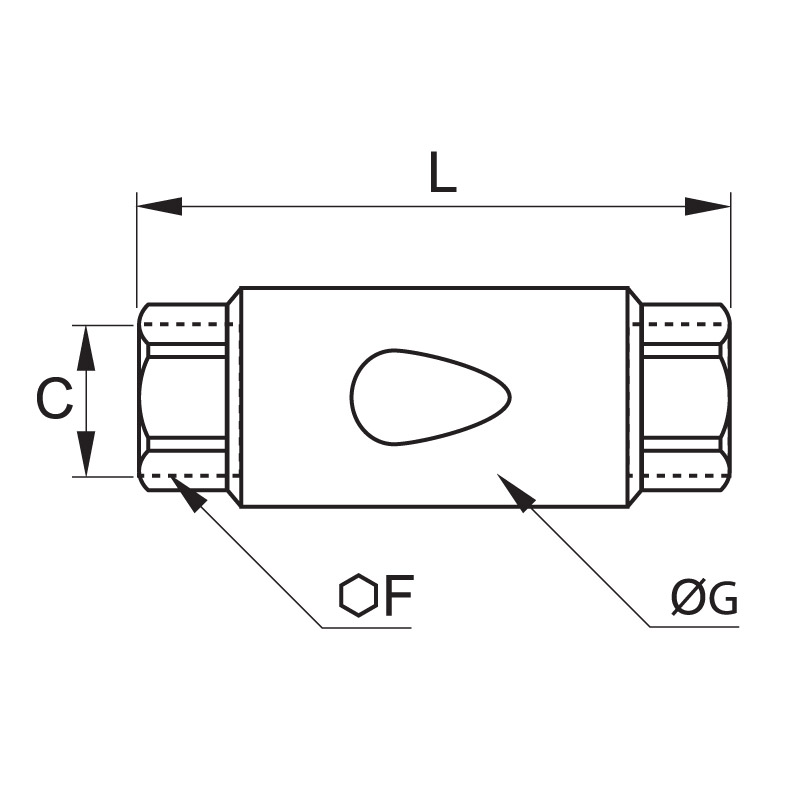

Preview: Technische Zeichnung 4890 10 10

Non-return valves, Non-return valves made of stainless steel

Product name	C	F	G	L	Flow rate in l/min	Price		Quantity
4890 10 10 Non-return valve	G1/8"	17	22	50	18,88	€151.82	Delivery time: 7-8 Workdays
4890 13 13 Non-return valve	G1/4"	17	22	50	19,91	€161.27	Delivery time: 7-8 Workdays
4890 17 17 Non-return valve	G3/8"	22	30	67	35,54	€196.64	Delivery time: 7-8 Workdays
4890 21 21 Non-return valve	G1/2"	24	30	71	36,5	€217.44	Delivery time: 7-8 Workdays
4890 27 27 Non-return valve	G3/4"	32	42	84	65,86	€288.58	Delivery time: 12-13 Workdays
4890 34 34 Non-return valve	G1"	38	42	90	92,6	€365.68	Delivery time: 12-13 Workdays

Allows fluid to pass in one direction while blocking flow in the other direction. Stainless steel... more

Close menu

Product information "4890 - Non-return valves made of stainless steel"

Allows fluid to pass in one direction while blocking flow in the other direction. Stainless steel construction features excellent chemical resistance to aggressive fluids and environments.

Flow rate in l/min:	18,88
Material seal:	FKM
Material spring:	Stainless steel 302
Material body:	Stainless steel 316l
min. temperature in °C:	-20
max. temperature in °C:	180
Material:	Stainless steel 316l
RoHS compliant:	Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
