Connection of pneumatic or electric actuators due to the special sub-base. Excellent chemical resistance to aggressive fluids and environments. Good pressure resistance.
| Material seal: | PTFE |
| Material adjusting spindle: | Stainless steel |
| Material body: | Stainless steel 316l |
| Material lever: | Stainless steel |
| Material stem: | Stainless steel 316l |
| Material union nut: | Stainless steel |

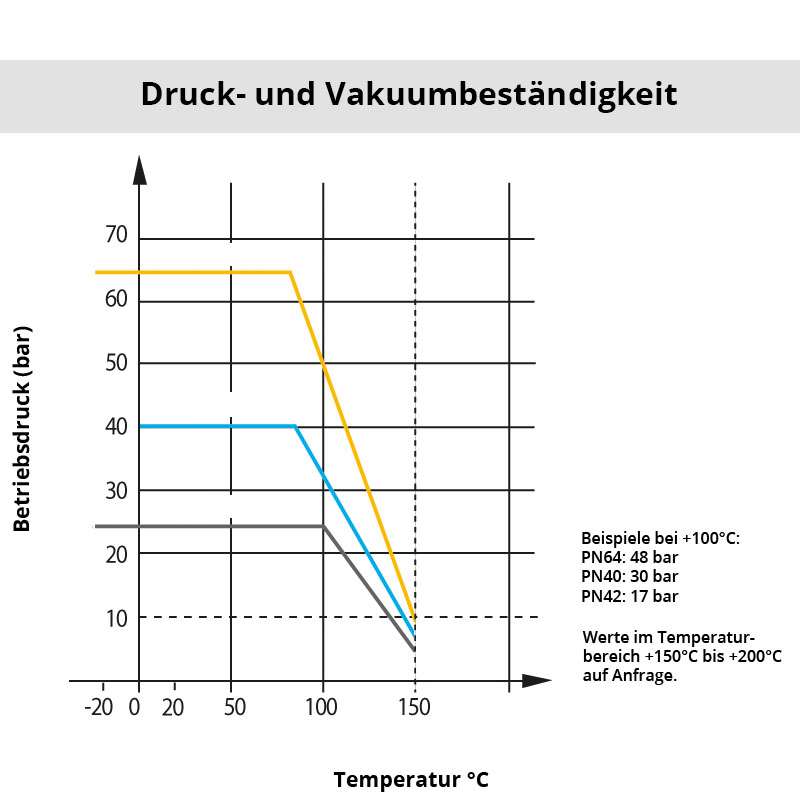

| Nominal pressure in bar: | 64 |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 150 |
| Material: | Stainless steel 316l |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
