Product name C E G H L M Price Quantity
4810 08 13 Ball valve G1/4" 10 30 44,5 53,5 110,5

€71.12 €83.67 (15% saved)

Available in 5 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
4810 10 17 Ball valve G3/8" 10 30 44,5 53,5 110,5

€74.57 €87.73 (15% saved)

Available, delivery time: 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
4810 15 21 Ball valve G1/2" 13 32,5 47 60 110,5

€91.63 €107.81 (15.01% saved)

Available in 5 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
4810 20 27 Ball valve G3/4" 14 40 54,5 70 131,5

€110.96 €130.55 (15.01% saved)

Available in 20 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
4810 25 34 Ball valve G1" 17 49 58,5 79 131,5

€156.84 €184.51 (15% saved)

Available in 5 days, transport time 1-2 working days

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "4810 - 2/2-way ball valves"

Excellent chemical resistance to aggressive fluids and environments and to high pressure.Good pressure resistance.
Material: Stainless steel 316l
max. temperature in °C: 150
min. temperature in °C: -20

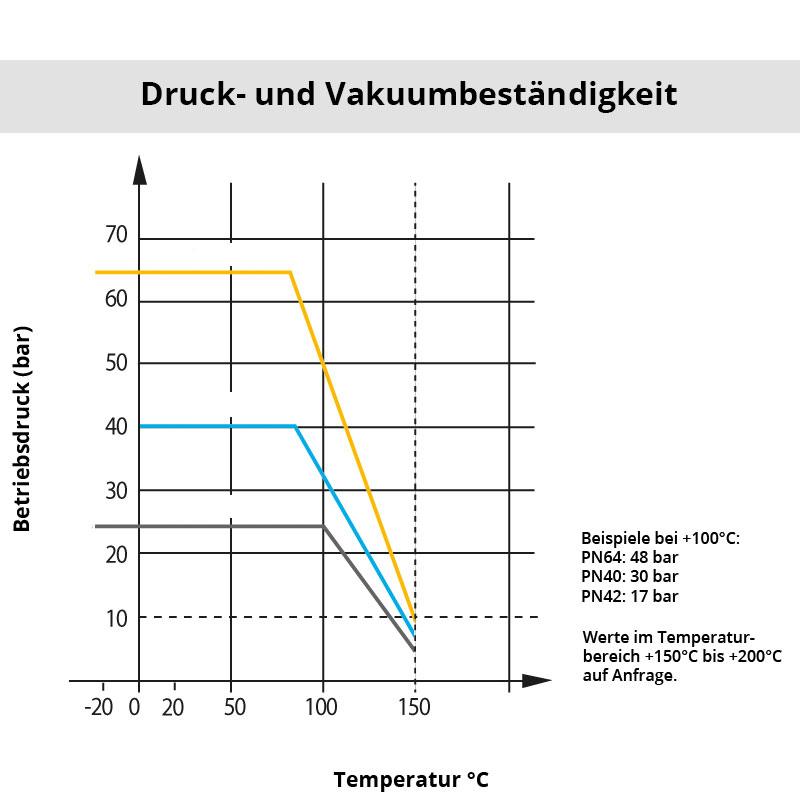

Nominal pressure in bar: 64
RoHS compliant: Yes
Material seal: PTFE
Material body: Stainless steel 316l
Material lever: Stainless steel
Material stem: Stainless steel 316l
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

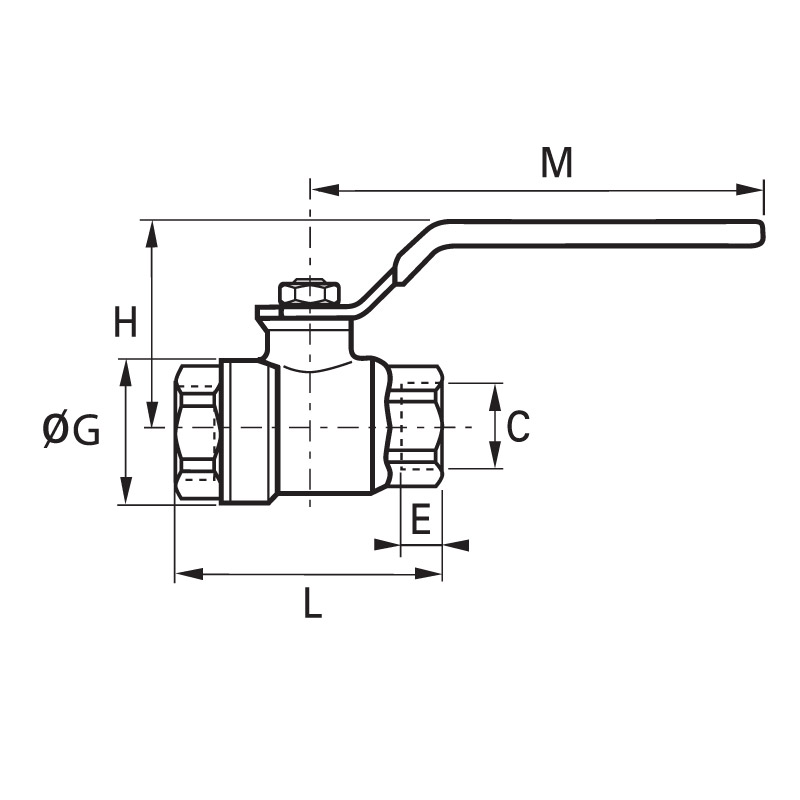

Technische Zeichnung 4810 08 13
