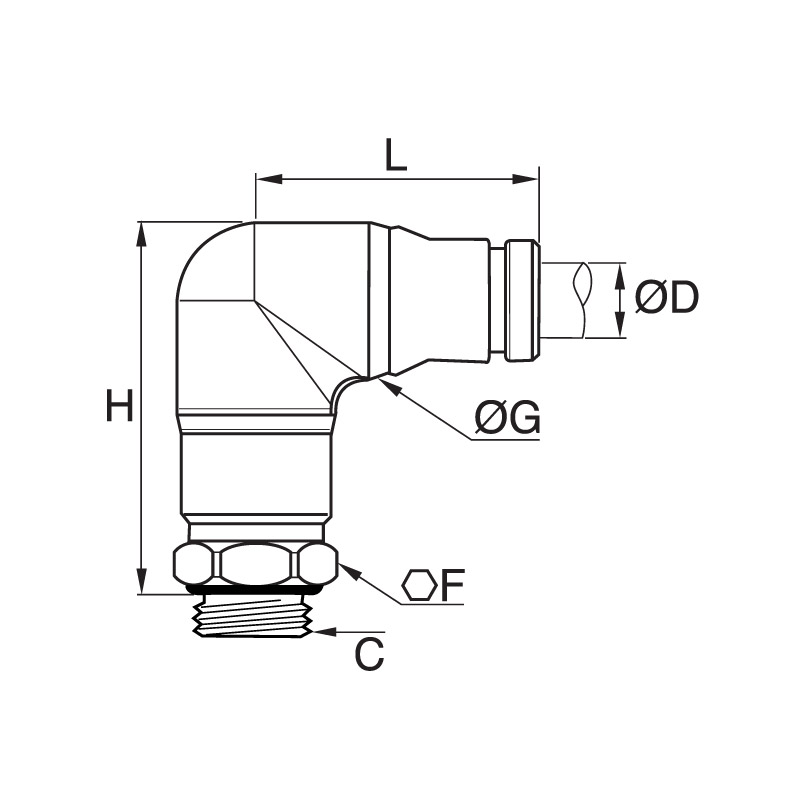

Connection of tubing at a 90° angle to a threaded port.
- materials: Stainless steel, sealings: FKM.
- stainless steel components and FKM seals for use in aggressive environments
- strong construction and compact
- hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface)
- permitting permanent contact with foodstuffs
- individual unit quality control and dating in order to guarantee quality and traceability
- materials conforming to FDA and 1934/2004 CE standards
- materials: Stainless steel, sealings: FKM.
- stainless steel components and FKM seals for use in aggressive environments
- strong construction and compact
- hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface)
- permitting permanent contact with foodstuffs
- individual unit quality control and dating in order to guarantee quality and traceability
- materials conforming to FDA and 1934/2004 CE standards
| Material seal ring: | Stainless steel 316l |
| Material seal: | FKM |
| Material body: | Stainless steel 316l |
| Material threaded fitting: | Stainless steel 316l |
| Material release button: | Stainless steel 303 |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 120 |
| Material: | Stainless steel 316l |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
