3699 - Compact Male stud elbows

LF 3600 - Brass special - Industrie and food, Compact Male stud elbows, Brass nickel plated chemical fda brass

From €7.32 *

Available, delivery time:

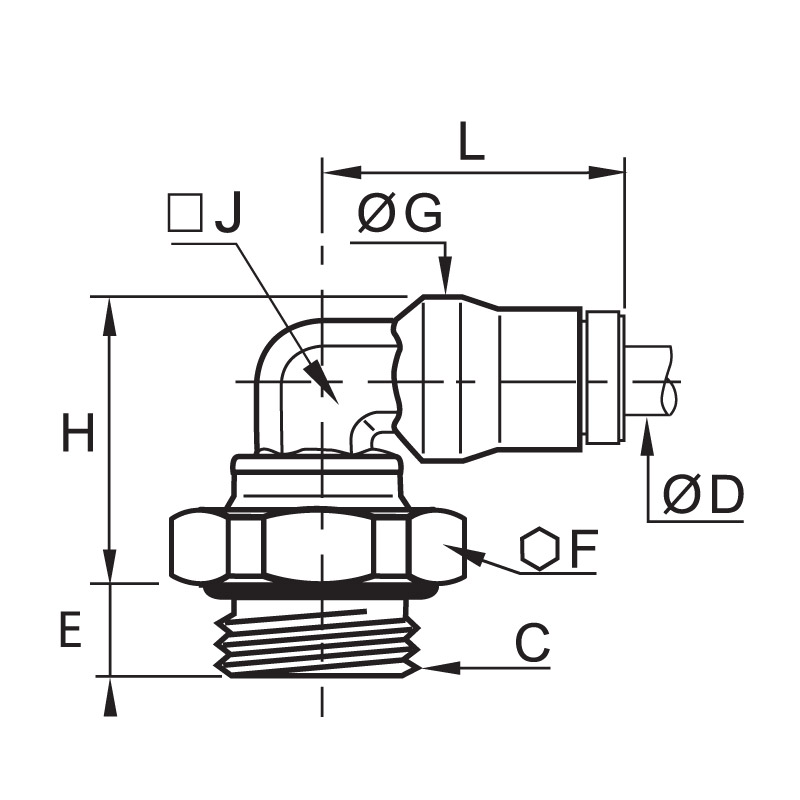

Product name	C	E	ØD	F	G	H	J	L	Price		Quantity
3699 04 10 Compact stud elbow	G1/8"	5,5	4 mm	13	10	17	7	18	€7.32	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 04 13 Compact stud elbow	G1/4"	6,5	4 mm	16	10	17,5	7	18	€9.31	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 04 19 Compact stud elbow	M5x0,8	3,5	4 mm	10	10	18	7	18	€9.02	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 04 52 Compact stud elbow	M6x1	4,5	4 mm	10	10	18	7	18	€9.06	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 04 56 Compact stud elbow	M8x1	5	4 mm	11	10	18	7	18	€14.67	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 06 10 Compact stud elbow	G1/8"	5,5	6 mm	13	12	19	8	21,5	€7.44	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 06 13 Compact stud elbow	G1/4"	6,5	6 mm	16	12	19,5	8	21,5	€9.77	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 06 60 Compact stud elbow	M10x1	5,5	6 mm	13	12	19	8	21,5	€11.13	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 08 10 Compact stud elbow	G1/8"	5,5	8 mm	13	15	20,5	10	23,5	€8.56	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 08 13 Compact stud elbow	G1/4"	6,5	8 mm	16	15	21,5	10	23,5	€9.97	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 08 17 Compact stud elbow	G3/8"	7,5	8 mm	20	15	21,5	10	23,5	€14.74	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 10 13 Compact stud elbow	G1/4"	6,5	10 mm	16	17,5	27	12	29	€12.03	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 10 17 Compact stud elbow	G3/8"	7,5	10 mm	20	17,5	25,5	12	29	€16.03	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 12 13 Compact stud elbow	G1/4"	6,5	12 mm	16	19,5	29,5	15	31	€16.36	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 12 17 Compact stud elbow	G3/8"	7,5	12 mm	20	19,5	28,5	15	31	€17.16	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 12 21 Compact stud elbow	G1/2"	9	12 mm	24	19,5	28,5	15	31	€19.25	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 14 17 Compact stud elbow	G3/8"	7,5	14 mm	20	21,5	29	16	34	€18.92	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3699 14 21 Compact stud elbow	G1/2"	9	14 mm	24	21,5	29,5	16	34	€21.27	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3699 - Compact Male stud elbows"

Connection of tubing at a 90° angle to a threaded port. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.

Special feature:	schwenkbar
Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
