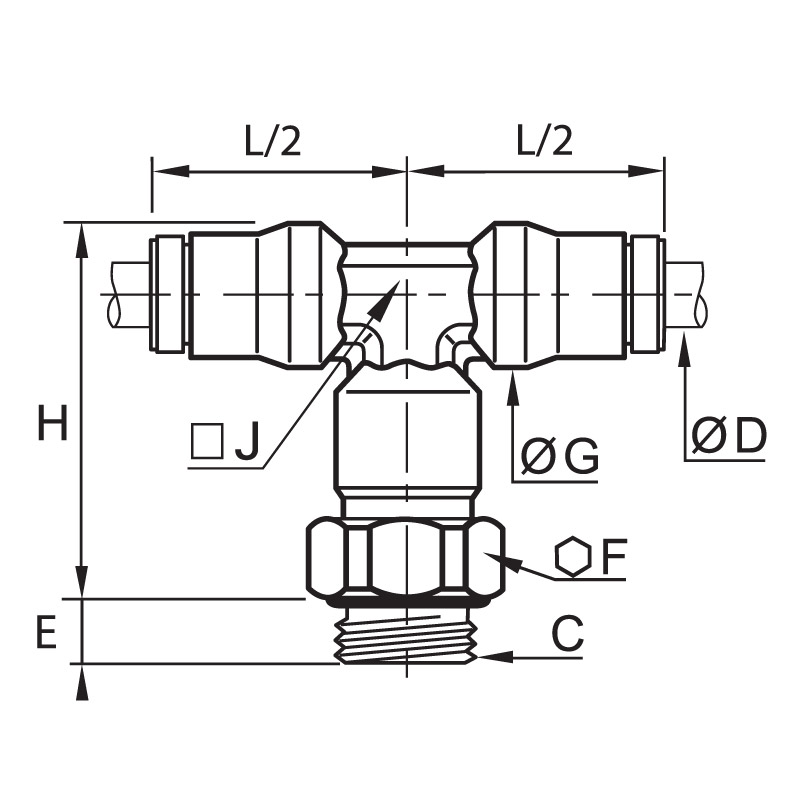

Connection of 2 tubes at a 90° angle with a male thread. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.
| Material seal ring: | Brass nickel plated chemical fda brass |
| Material seal: | FKM |
| Material body: | Brass nickel plated chemical fda brass |
| Material threaded fitting: | Brass nickel plated chemical fda brass |
| Material release button: | Brass nickel plated chemical fda brass |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 150 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Brass nickel plated chemical fda brass |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
