3693 - Stud run tee

LF 3600 - Brass special - Industrie and food, Stud run tee, Brass nickel plated chemical fda brass

From €11.16 *

Available, delivery time:

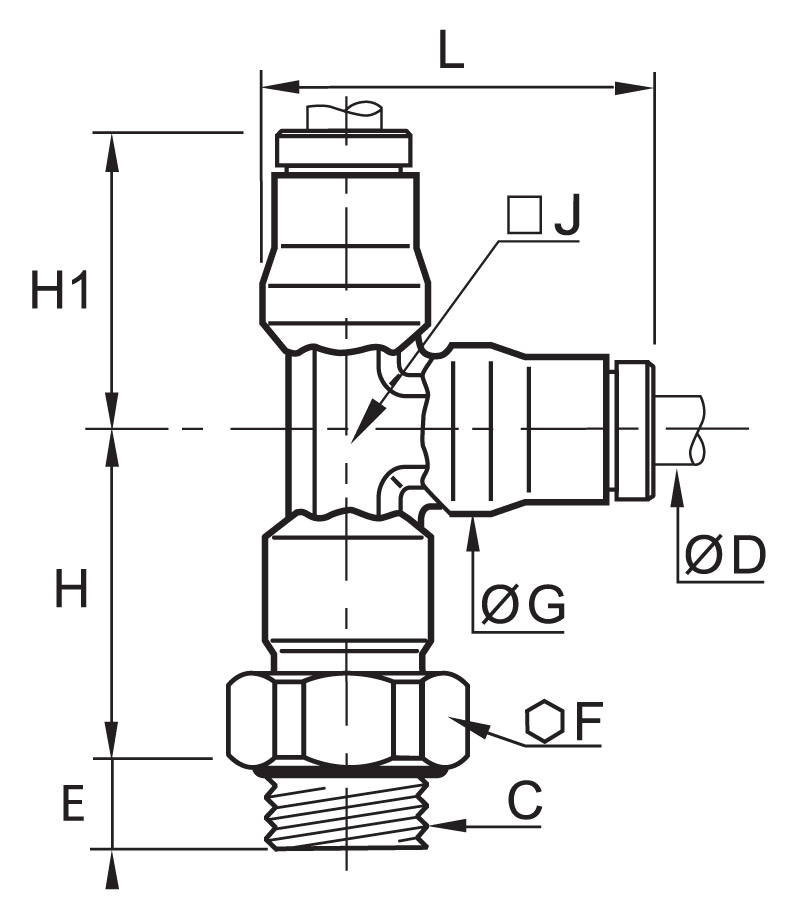

Product name	C	E	ØD	F	G	H	H1	J	L	Price		Quantity
3693 04 10 L-stud coupling	G1/8"	5,5	4 mm	13	10	20,5	18	7	23	€11.16	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 04 19 L-stud coupling	M5x0,8	3,5	4 mm	10	10	22,5	18	7	23	€11.41	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 06 10 L-stud coupling	G1/8"	5,5	6 mm	13	12	25	21,5	8	28	€13.13	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 06 13 L-stud coupling	G1/4"	6,5	6 mm	16	12	24,5	21,5	8	28	€16.46	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 08 10 L-stud coupling	G1/8"	5,5	8 mm	14	15	26,5	23,5	10	31	€14.09	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 08 13 L-stud coupling	G1/4"	6,5	8 mm	16	15	26,5	23,5	10	31	€17.59	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 10 13 L-stud coupling	G1/4"	6,5	10 mm	18	17,5	33	29	12	37,5	€27.69	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 12 17 L-stud coupling	G3/8"	7,5	12 mm	20	19,5	36,5	31	15	40,5	€33.71	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3693 14 21 L-stud coupling	G1/2"	9	14 mm	24	21,5	38,5	34	16	45	€44.90	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3693 - Stud run tee"

In line connection of 2 tubes at a 90° angle to a threaded port. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.

Special feature:	schwenkbar
Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
