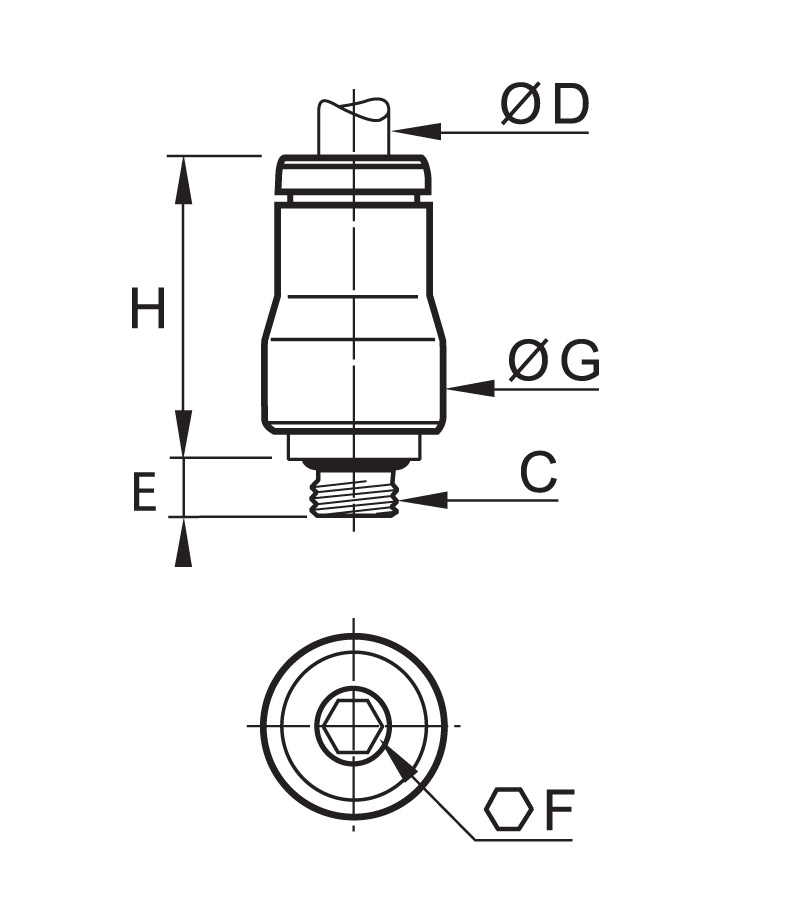

In line connection of tubing to a threaded port in very tight spaces. Tightened with an Allen key. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.
| Maximum working pressure in bar: | 30 |
| Material seal ring: | Brass nickel plated chemical fda brass |
| Material seal: | FKM |
| Material body: | Brass nickel plated chemical fda brass |
| Material release button: | Brass nickel plated chemical fda brass |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 150 |
| Vacuum resistance in mm Hg: | 755 |
| RoHS compliant: | Yes |
| Weight in kg: | 0,005 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
