3669 - Extended Male stud elbows

LF 3600 - Brass special - Industrie and food, Extended Male stud elbows, Brass nickel plated chemical fda brass

From €8.62 *

Available, delivery time:

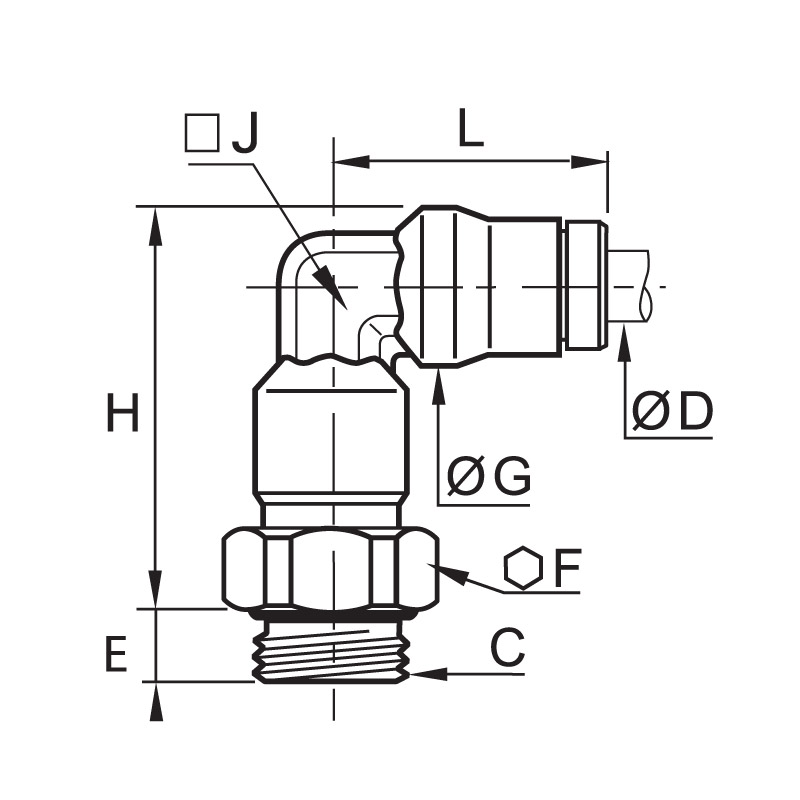

Product name	C	E	ØD	F	G	H	J	L	Price		Quantity
3669 04 10 Extended stud elbow	G1/8"	5,5	4 mm	13	10	25,5	7	18	€8.62	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 04 19 Extended stud elbow	M5x0,8	3,5	4 mm	10	10	27,5	7	18	€10.53	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 06 10 Extended stud elbow	G1/8"	5,5	6 mm	13	12	31	8	21,5	€8.62	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 06 13 Extended stud elbow	G1/4"	6,5	6 mm	16	12	30,5	8	21,5	€11.07	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 08 10 Extended stud elbow	G1/8"	5,5	8 mm	14	15	33,5	10	23,5	€10.17	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 08 13 Extended stud elbow	G1/4"	5,5	8 mm	16	15	34	10	23,5	€11.67	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 10 13 Extended stud elbow	G1/4"	6,5	10 mm	18	17,5	42	12	29	€14.68	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 10 17 Extended stud elbow	G3/8"	7,5	10 mm	20	17,5	41	12	29	€19.27	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 12 13 Extended stud elbow	G1/4"	6,5	12 mm	20	19,5	47	15	31	€19.77	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 12 17 Extended stud elbow	G3/8"	7,5	12 mm	20	19,5	46	15	31	€20.52	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3669 14 21 Extended stud elbow	G1/2"	9	14 mm	24	21,5	49	16	34	€24.86	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3669 - Extended Male stud elbows"

Connection of tubing at a 90° angle to a threaded port. Height dimensions are designed to pass over a 3699 elbow. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.

Special feature:	schwenkbar
Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
