3618 - Single banjo elbow connections

LF 3600 - Brass special - Industrie and food, Single banjo elbow connections, Brass nickel plated chemical fda brass

From €10.08 *

Available, delivery time:

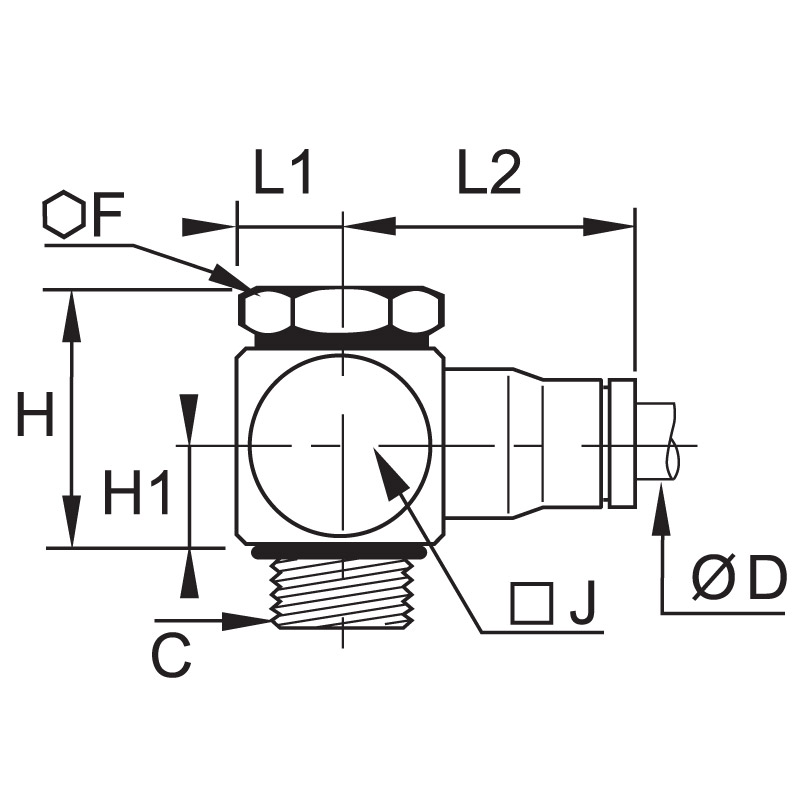

Product name	C	ØD	F	H	H1	J	L1	L2	Price		Quantity
3618 04 10 Single banjo elbow	G1/8"	4 mm	14	23	9,5	17	10	20,5	€16.35	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 04 19 Single banjo elbow	M5x0,8	4 mm	8	14,5	6,5	10	6	18,5	€10.08	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 06 10 Single banjo elbow	G1/8"	6 mm	14	23	9,5	17	10	23,5	€19.14	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 06 13 Single banjo elbow	G1/4"	6 mm	17	22	9	22	13	25,5	€18.61	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 06 19 Single banjo elbow	M5x0,8	6 mm	8	15	7	10	6	22,5	€12.98	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 08 10 Single banjo elbow	G1/8"	8 mm	14	23	9,5	17	10	26	€19.11	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 08 13 Single banjo elbow	G1/4"	8 mm	17	22	9	22	13	27,5	€18.41	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3618 10 17 Single banjo elbow	G3/8"	10 mm	22	33	14	22	13	32	€27.20	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3618 - Single banjo elbow connections"

Connection of tubing at a 90° angle to a threaded port. Tightened on the top of the fitting with a flat spanner or socket wrench to facilitate assembly in tight spaces. The tube outlet can be orientated during assembly. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.

Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material adjusting spindle:	Brass nickel plated chemical fda brass
Material body:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
