3609 - Male stud elbows

LF 3600 - Brass special - Industrie and food, Male stud elbows, Brass nickel plated chemical fda brass

From €6.18 *

Available, delivery time:

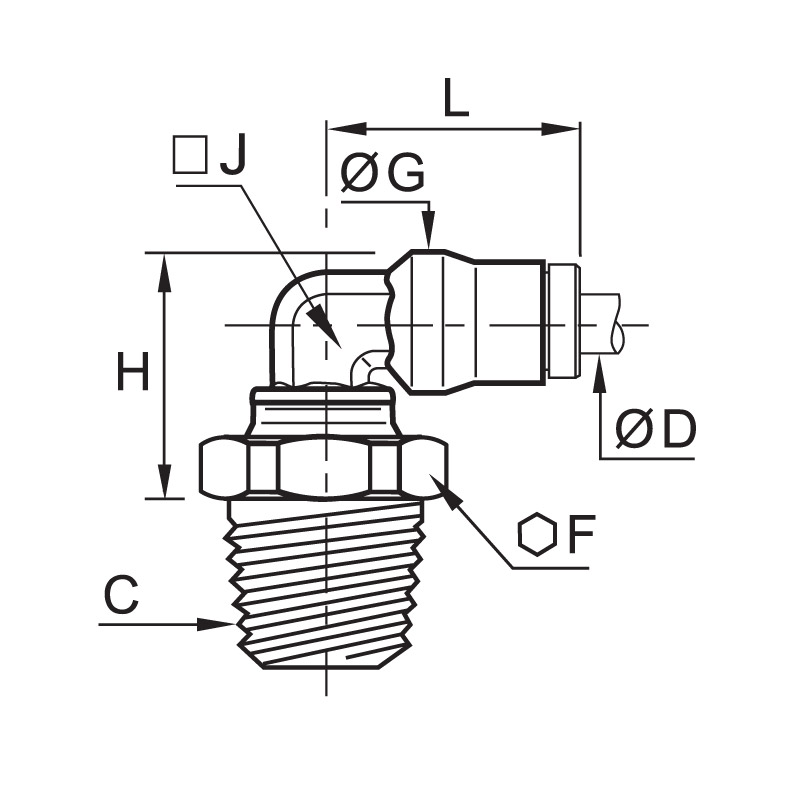

Product name	C	ØD	F	G	H	J	K	L	Price		Quantity
3609 04 10 Stud elbow	R1/8"	4 mm	13	10	15	7	-	18	€6.18	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 04 13 Stud elbow	R1/4"	4 mm	14	10	17	7	-	18	€7.82	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 06 10 Stud elbow	R1/8"	6 mm	13	12	17,5	8	-	21,5	€6.60	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 06 13 Stud elbow	R1/4"	6 mm	14	12	19	8	-	21,5	€7.60	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 08 10 Stud elbow	R1/8"	8 mm	13	15	19,5	10	-	23,5	€8.02	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 08 13 Stud elbow	R1/4"	8 mm	14	15	21	10	-	23,5	€8.29	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 08 17 Stud elbow	R3/8"	8 mm	17	15	21	10	-	23,5	€11.07	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 10 13 Stud elbow	R1/4"	10 mm	15	17,5	23,5	12	-	29	€11.57	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 10 17 Stud elbow	R3/8"	10 mm	17	17,5	25,5	12	-	29	€13.13	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 12 13 Stud elbow	R1/4"	12 mm	15	19,5	26	15	-	31	€14.30	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 12 17 Stud elbow	R3/8"	12 mm	17	19,5	28,5	15	-	31	€14.97	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 12 21 Stud elbow	R1/2"	12 mm	21	19,5	28,5	15	-	31	€18.04	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 14 17 Stud elbow	R3/8"	14 mm	19	21,5	29	16	-	34	€20.08	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 14 21 Stud elbow	R1/2"	14 mm	22	21,5	30	16	-	34	€19.92	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 56 11 Stud elbow	NPT1/8"	1/4"	11	12,5	17,5	8	12	22	€8.00	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 60 14 Stud elbow	NPT1/4"	3/8"	15	17	23,5	-	16	29	€12.64	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3609 60 18 Stud elbow	NPT3/8"	3/8"	18	17	26	-	19,5	29	€13.74	Available in 30 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3609 - Male stud elbows"

Connection of tubing at 90° with a male thread.Tightened on the top of the fitting with a flat spanner or Allen key to facilitate assembly in tight spaces. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.

Special feature:	schwenkbar
Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
