3608 - Stud run tee

LF 3600 - Brass special - Industrie and food, Stud run tee, Brass nickel plated chemical fda brass

From €11.54 *

Available, delivery time:

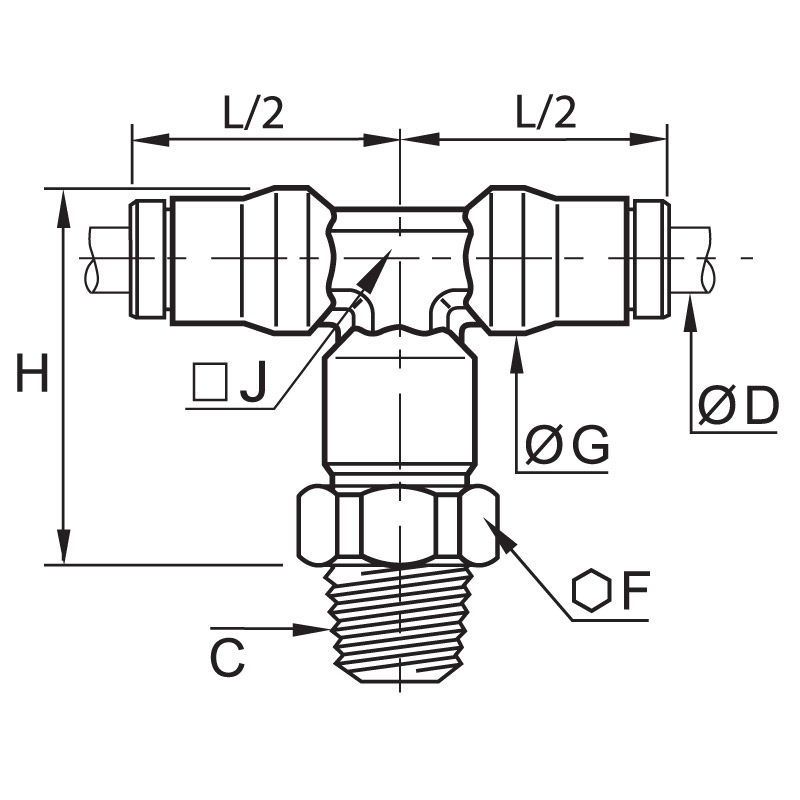

Product name	C	ØD	F	G	H	J	Price		Quantity
3608 04 10 T-stud coupling	R1/8"	4 mm	10	10	24,5	7	€11.54	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 06 10 T-stud coupling	R1/8"	6 mm	13	12	29,5	8	€12.64	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 06 13 T-stud coupling	R1/4"	6 mm	14	12	30,5	8	€14.39	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 08 10 T-stud coupling	R1/8"	8 mm	14	15	32,5	10	€15.54	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 08 13 T-stud coupling	R1/4"	8 mm	14	15	34	10	€15.70	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 10 13 T-stud coupling	R1/4"	10 mm	18	17,5	39	12	€24.86	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 10 17 T-stud coupling	R3/8"	10 mm	18	17,5	41	12	€28.05	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 12 17 T-stud coupling	R3/8"	12 mm	20	19,5	46,5	15	€34.33	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 14 21 T-stud coupling	R1/2"	14 mm	22	21,5	50,5	16	€39.94	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3608 60 18 T-stud coupling	NPT3/8"	3/8"	18	17	41	12	€31.29	This article is currently not available!

Product information "3608 - Stud run tee"

Connection of 2 tubes at a 90° angle with a male thread. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.

Special feature:	schwenkbar
Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material threaded fitting:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
