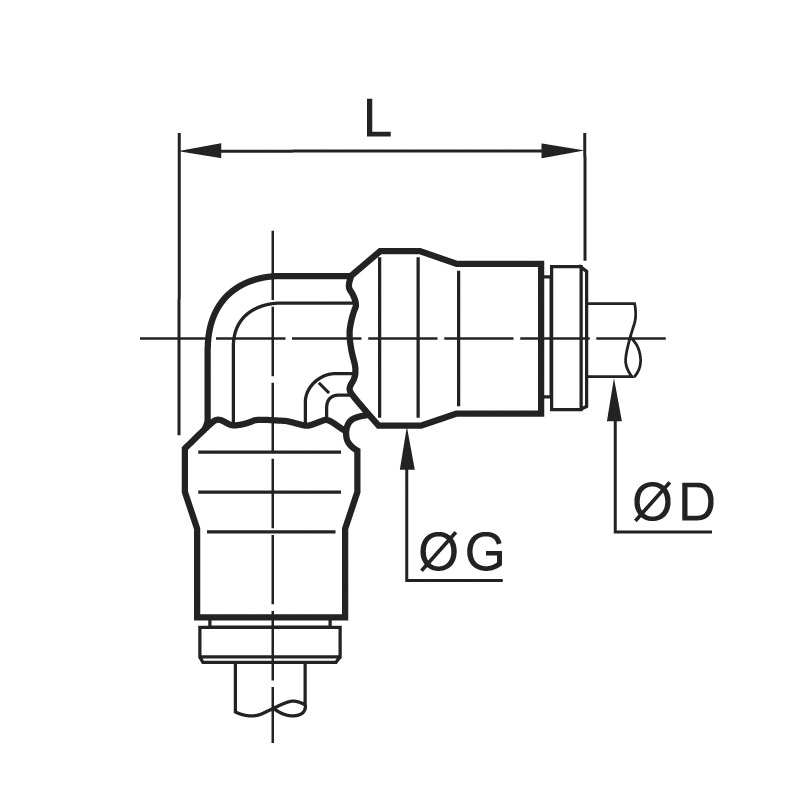

Connection at a 90° angle of 2 tubes of equal diameters. Maintains bend radius of the tubing.
- solid construction and compact
- external shapes easy to clean
- components comply with FDA standard and 1935/2004/EC regulation
- excellent resistance to corrosion
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS
- solid construction and compact
- external shapes easy to clean
- components comply with FDA standard and 1935/2004/EC regulation
- excellent resistance to corrosion
- individual unit quality control and dating in order to guarantee quality and traceability,
- RoHS
| Material seal ring: | Brass nickel plated chemical fda brass |
| Material seal: | FKM |
| Material body: | Brass nickel plated chemical fda brass |
| Material release button: | Brass nickel plated chemical fda brass |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 150 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Brass nickel plated chemical fda brass |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
