3600 - Metal cartridges for liquids and gases - one-piece cartridges

Carstick cartridges, Metal cartridges for liquids and gases - one-piece cartridges, Brass nickel plated chemical fda brass

From €3.70 *

Available, delivery time:

PDF-Datasheet

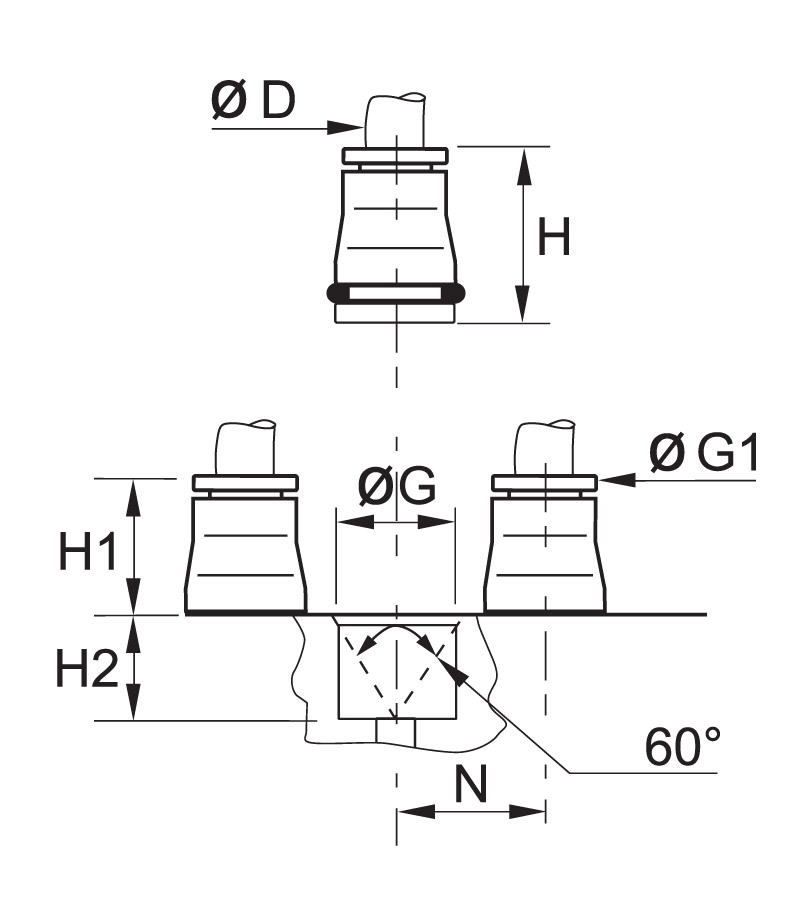

Product name	ØD	G	G1	H	H1	H2	N	Price		Quantity
3600 04 00 Cartridge	4 mm	9,8	8	17	8,5	8,5	11	€3.70	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3600 06 00 Cartridge	6 mm	12,1	10	19	10,5	8,5	13,5	€4.03	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3600 08 00 Cartridge	8 mm	14,8	13	21	12,5	8,5	16	€5.22	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3600 10 00 Cartridge	10 mm	17,5	15	24,5	14	10,5	20	€5.43	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3600 12 00 Cartridge	12 mm	20	17	25	14,5	10,5	22,5	€7.63	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3600 14 00 Cartridge	14 mm	22	20	28,5	16,5	12	25	€7.44	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3600 - Metal cartridges for liquids and gases - one-piece cartridges"

Connection of tubing in a customised assembly block with cavities prepared for the insertion of cartridges. Advantages in use of LF3600 cartridges:
- threaded hole unnecessary
- compact installation through reduced dimensions
- quick mounting and unmounting of the tube
Individual unit quality control and dating in order to guarantee quality and traceability. conforms to FDA standard and RoHS.

Material:	Brass nickel plated chemical fda brass
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
