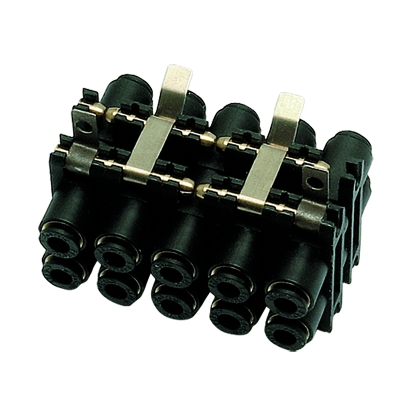

Product information "3300 06 00 Modular plug-in connector"
Modular connection of 2 nests of tubes. Connection and disconnection of the 2 nests of tubes can be done in one operation. Combined male and female modules limit the number of components.. Easy customization to prevent mistakes. Suitable for bulkhead assembly, on panels or in cabinets.
Weight in kg:
0,214
Maximum working pressure in bar:
10
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Material seal:
NBR
Material body:
Engineered polymer
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
