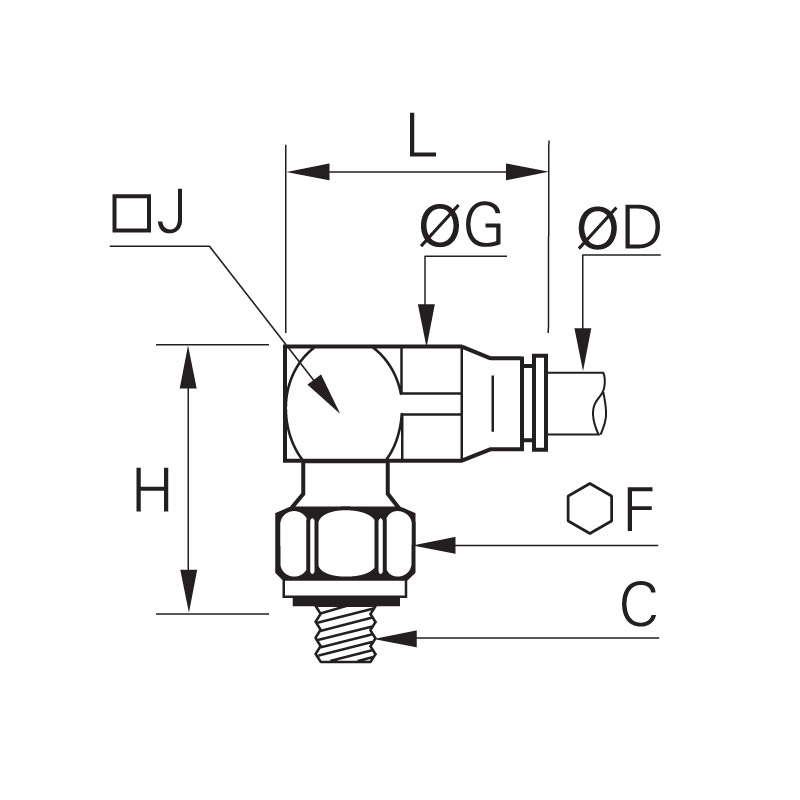

Connection of tubing at a 90° angle with a male thread. solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Material seal ring: | PTFE |
| Material seal: | NBR |
| Material body: | Brass nickel plated |
| Material threaded fitting: | Brass nickel plated |
| Material release button: | Brass nickel plated |
| min. temperature in °C: | -15 |
| max. temperature in °C: | 70 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
