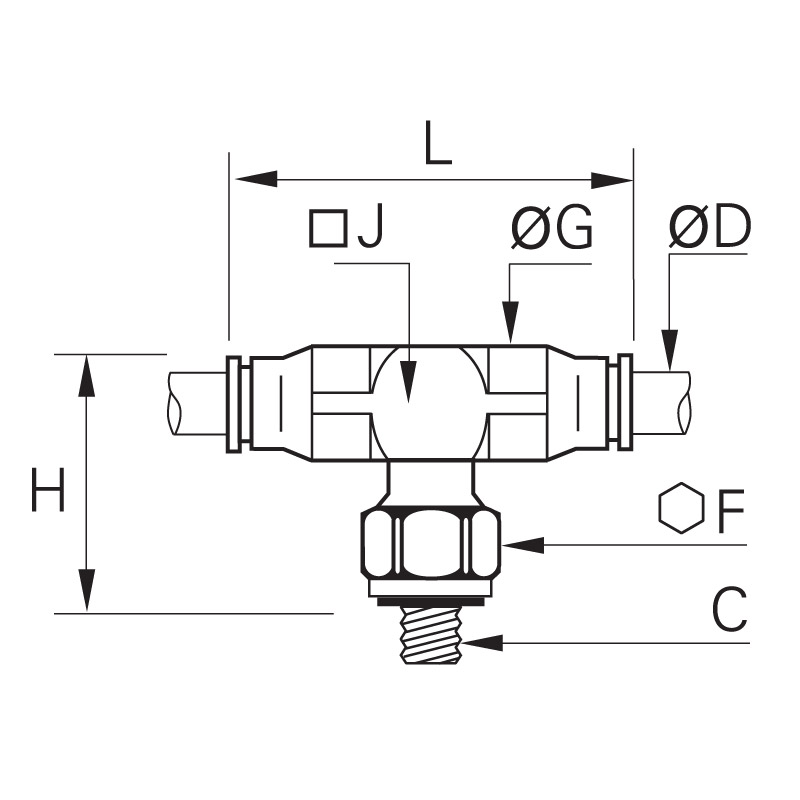

Connection of 2 tubes at a 90° angle with a male thread. Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Maximum working pressure in bar: | 18 |
| Material seal ring: | PTFE |
| Material seal: | NBR |
| Material body: | Brass nickel plated |
| Material threaded fitting: | Brass nickel plated |
| Material release button: | Brass nickel plated |
| min. temperature in °C: | -15 |
| max. temperature in °C: | 70 |
| RoHS compliant: | Yes |
| Weight in kg: | 0,004 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
