Product information "3229 03 09 Extended stud elbow"

Connection of tubing at a 90° angle to a threaded port. Height dimensions are designed to pass over a 3299 elbow.&nbsp
Weight in kg: 0,004
Maximum working pressure in bar: 18
max. temperature in °C: 70
min. temperature in °C: -15
RoHS compliant: Yes
Material seal ring: PTFE
Material seal: NBR
Material body: Brass nickel plated
Material threaded fitting: Brass nickel plated
Material release button: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

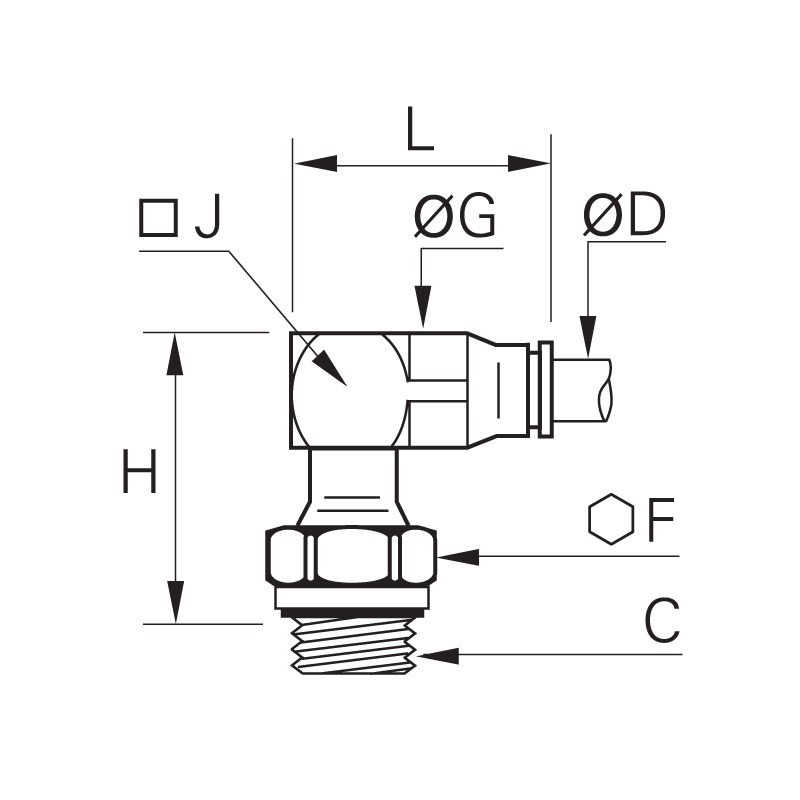

Technische Zeichnung 3229 03 19
C: M3x0,5
F: 6
G: 6
H: 16
J: 6
L: 13,5
ØD: 3 mm
