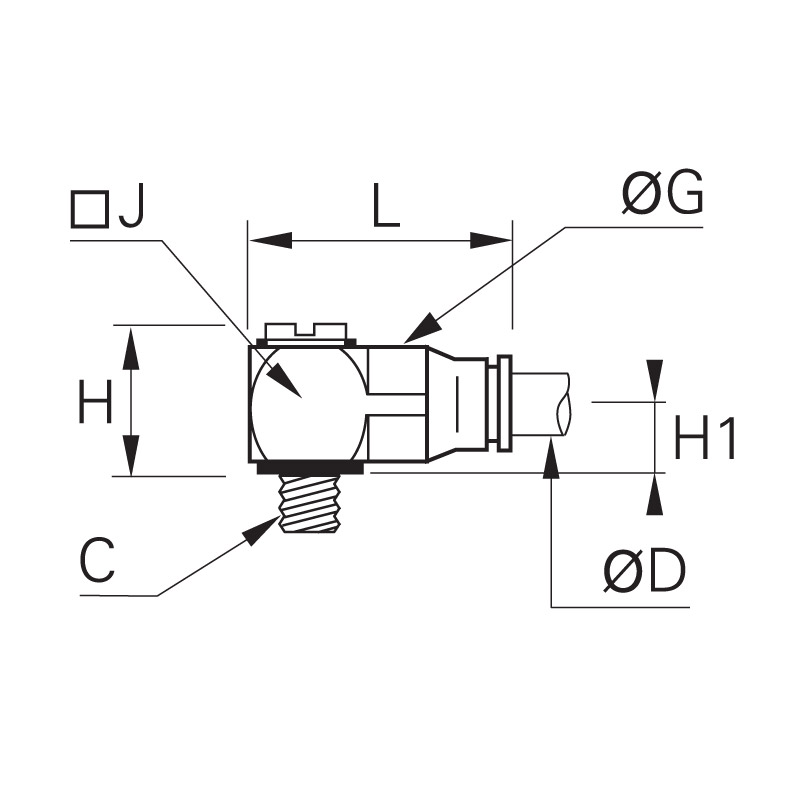

Connection of tubing at a 90° angle to a threaded port. Tightened on the top of the fitting by use of a screwdriver slot. Assembly in tight spaces. Very strong construction. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Material boot: | 3218 - Single banjos,Legris,connectors,LF 3200 - Miniature-pneumatics |
| Material seal ring: | PTFE |
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Brass nickel plated |
| Material release button: | Brass nickel plated |
| min. temperature in °C: | -15 |
| max. temperature in °C: | 70 |
| Material: | Brass nickel plated |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
