Product information "3202 03 00 Equal and unequal elbow"

Connection at a 90° angle of 2 tubes of equal diameters.&nbsp
Weight in kg: 0,003
Maximum working pressure in bar: 18
max. temperature in °C: 70
min. temperature in °C: -15
RoHS compliant: Yes
Material seal: NBR
Material body: Brass nickel plated
Material release button: Brass nickel plated
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

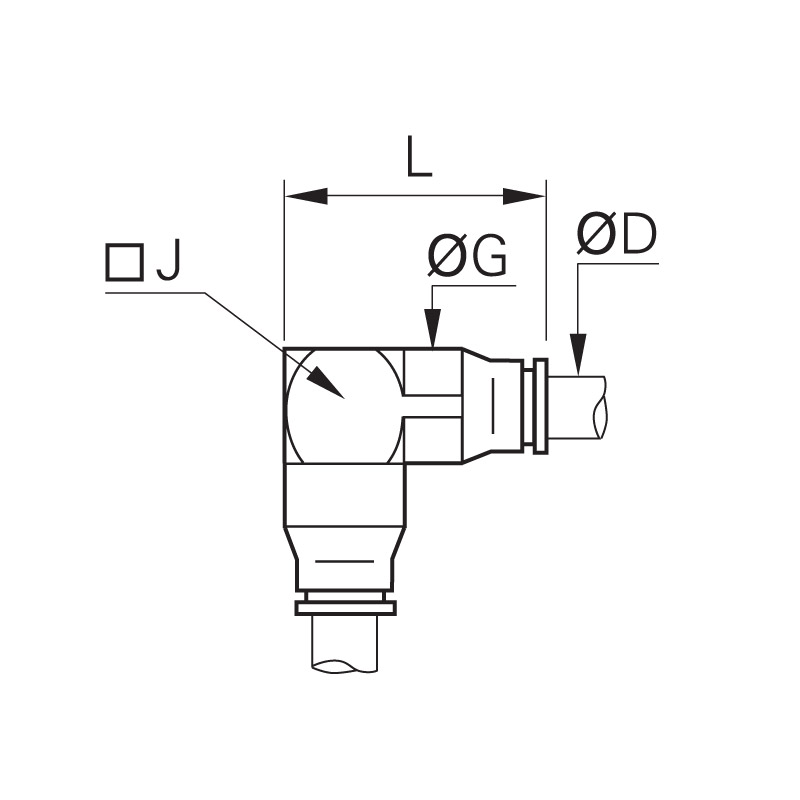

Technische Zeichnung 3202 03 00
G: 6
J: 6
L: 13,5
ØD: 3 mm
