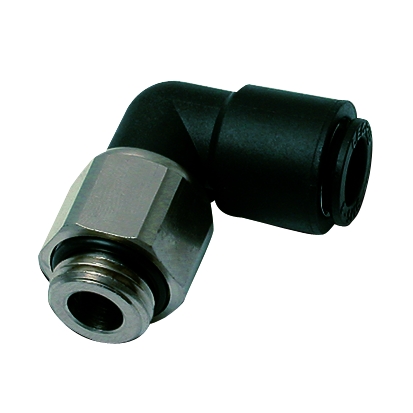

Connection of tubing at a 90° angle. Designed to limit constrictions in the tubing diameter when the cylinder is operating. compact. Solid construction. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
Weight in kg:
0,012
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material body:
Engineered polymer
Material threaded fitting:
Brass nickel plated
Material gripping ring:
PTFE
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
