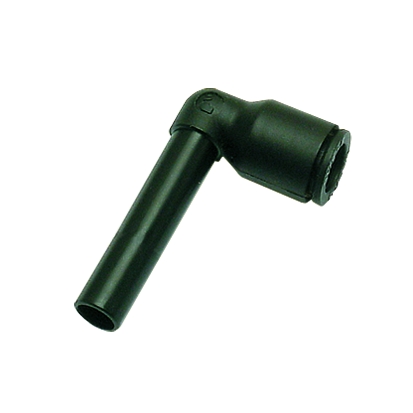

3184 - Extended equal elbows

LF 3000 standard pneumatic, Extended equal elbows, Engineered polymer

From €5.38 *

Available, delivery time:

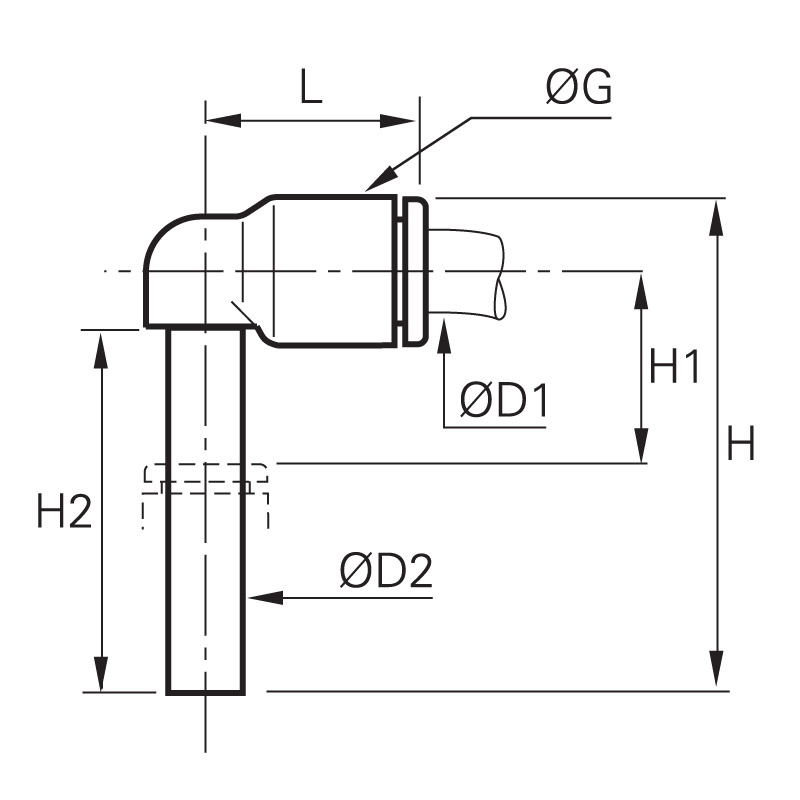

Product name	ØD1	ØD2	G	H	H1	H2	L	Price		Quantity
3184 04 00 Extended equal & unequal elbow	4 mm	4 mm	8,5	32,5	15,5	25	14	€5.38	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 04 06 Extended equal & unequal elbow	4 mm	6 mm	10,5	38,5	19	29	16	€6.44	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 06 00 Extended equal & unequal elbow	6 mm	6 mm	10,5	38,5	19	29	16	€5.95	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 06 08 Extended equal & unequal elbow	6 mm	8 mm	13,5	49	23,5	37	23	€7.37	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 08 00 Extended equal & unequal elbow	8 mm	8 mm	13,5	49	23,5	37	23	€7.35	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 08 10 Extended equal & unequal elbow	8 mm	10 mm	16	56	26,5	41,5	26,5	€9.51	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 10 00 Extended equal & unequal elbow	10 mm	10 mm	16	56	26,5	41,5	26,5	€10.01	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 10 12 Extended equal & unequal elbow	10 mm	12 mm	19	62,5	28	45,5	31	€12.15	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3184 12 00 Extended equal & unequal elbow	12 mm	12 mm	19	62,5	28	45,5	31	€11.10	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3184 - Extended equal elbows"

Connection of tubing at a 90° angle. Dimensions are designed to pass over a 3182 elbow.Useful on pneumatic control valves. solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
