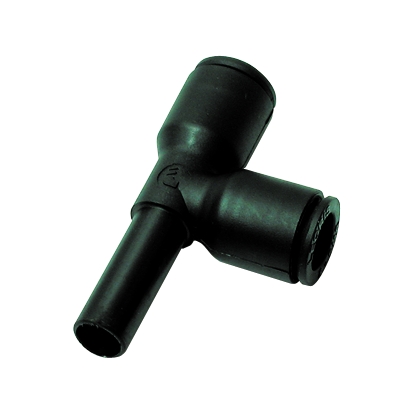

3183 - Plug-in equal and unequal run tee

LF 3000 standard pneumatic, Plug-in equal and unequal run tee, Engineered polymer

From €5.27 *

Available, delivery time:

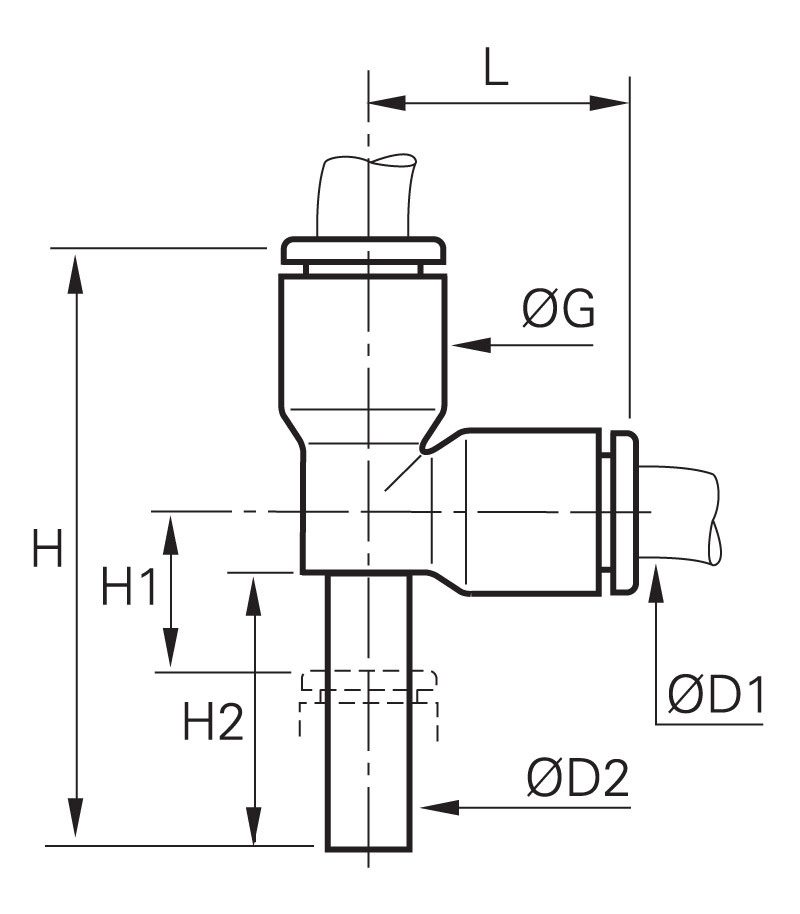

Product name	ØD1	ØD2	G	H	H1	H2	L	Price		Quantity
3183 04 00 L-connection	4 mm	4 mm	8,5	33	6	15,5	14,5	€5.47	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 04 06 L-connection	4 mm	6 mm	10,5	38,5	7	17	17,5	€7.83	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 06 00 L-connection	6 mm	6 mm	10,5	38,5	7	17	17	€5.27	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 06 08 L-connection	6 mm	8 mm	13,5	48,5	8	21,5	23	€9.20	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 08 00 L-connection	8 mm	8 mm	13,5	49	8	21,5	23	€6.13	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 08 10 L-connection	8 mm	10 mm	16	56,5	10,5	24,5	26,5	€10.35	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 10 00 L-connection	10 mm	10 mm	16	57	10,5	24,5	26,5	€7.37	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 10 12 L-connection	10 mm	12 mm	19	65,5	10,5	27,5	31	€12.40	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3183 12 00 L-connection	12 mm	12 mm	19	65,5	10,5	27,5	31	€12.40	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3183 - Plug-in equal and unequal run tee"

In line connection of 2 tubes at a 90° angle with another push-in fitting or cartridge. compact.solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
