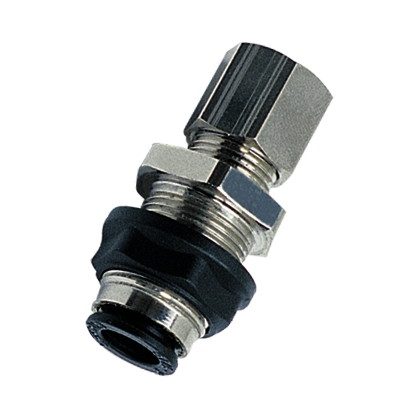

Product information "3146 10 00 Mixed bulkhead connector"

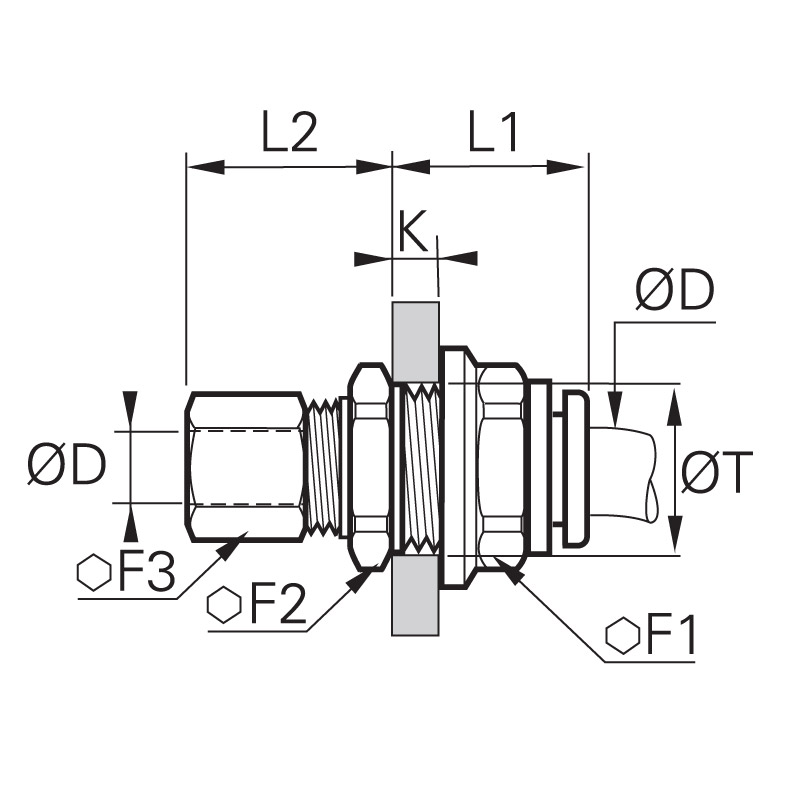

Connection of 2 tubes through a panel, with optimised sealing between the fitting and the panel. The universal fitting enables fixed connection to metal tubes on one side while the push-in fitting on the other side enables easy connection and disconnection of polymer tubing.
Weight in kg:
0,066
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material body:
Brass nickel plated
Material gripping ring:
Brass
Material stem:
Engineered polymer
Material union nut:
Brass nickel plated
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
