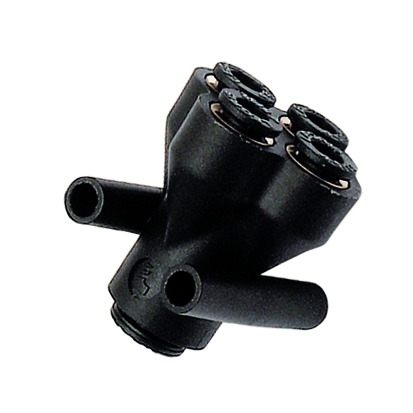

Product information "3144 04 06 Multiple Y pieces equal and unequal"
In-line connection of 4 tubes, from one inlet. Can be fixed in position by the use of two screws. Solid construction. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
Weight in kg:
0,013
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material body:
Engineered polymer
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
