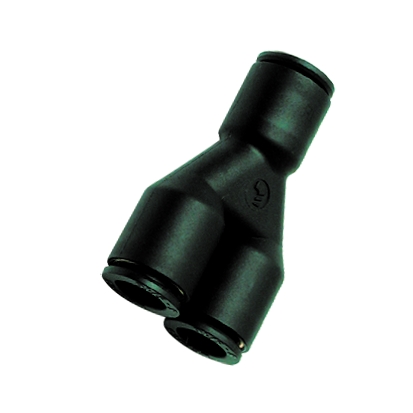

3140 - Single Y pieces equal and unequal

LF 3000 standard pneumatic, Single Y pieces equal and unequal, Engineered polymer

From €4.61 *

Available, delivery time:

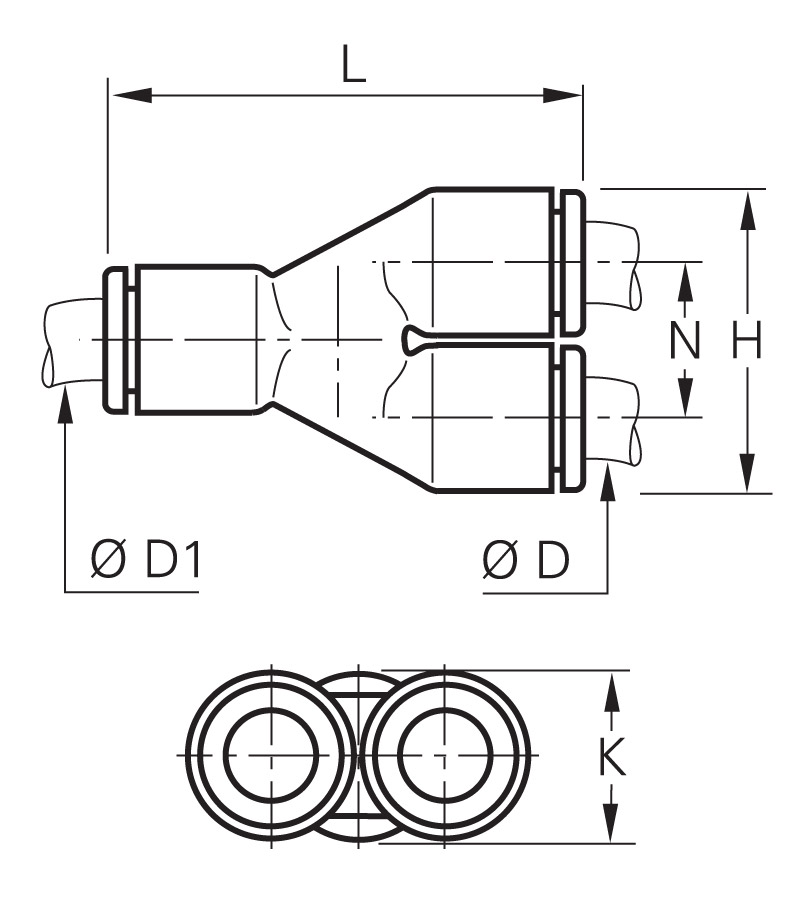

Product name	ØD	ØD1	H	K	L	N	Price		Quantity
3140 04 00 Single Y piece equal and unequal	4 mm	4 mm	17,5	8,5	28,5	9	€4.61	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 04 06 Single Y piece equal and unequal	4 mm	6 mm	17,5	10,5	33	9	€7.43	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 06 00 Single Y piece equal and unequal	6 mm	6 mm	21,5	10,5	35	11	€6.91	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 06 08 Single Y piece equal and unequal	6 mm	8 mm	22,5	13,5	41	11,5	€8.72	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 08 00 Single Y piece equal and unequal	8 mm	8 mm	28	13,5	45	14,5	€8.04	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 08 10 Single Y piece equal and unequal	8 mm	10 mm	28	16	47	14,5	€12.25	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 10 00 Single Y piece equal and unequal	10 mm	10 mm	33	16	53	17	€11.38	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 10 12 Single Y piece equal and unequal	10 mm	12 mm	33	19	57	17	€13.07	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3140 12 00 Single Y piece equal and unequal	12 mm	12 mm	39	19	57	17	€12.48	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3140 - Single Y pieces equal and unequal"

In line connection of 3 tubes of equal or different diameters. Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
