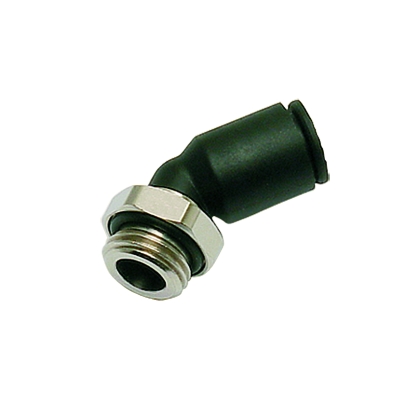

3133 - 45° Male stud elbows

LF 3000 standard pneumatic, 45° Male stud elbows, Engineered polymer

From €4.68 *

Available, delivery time:

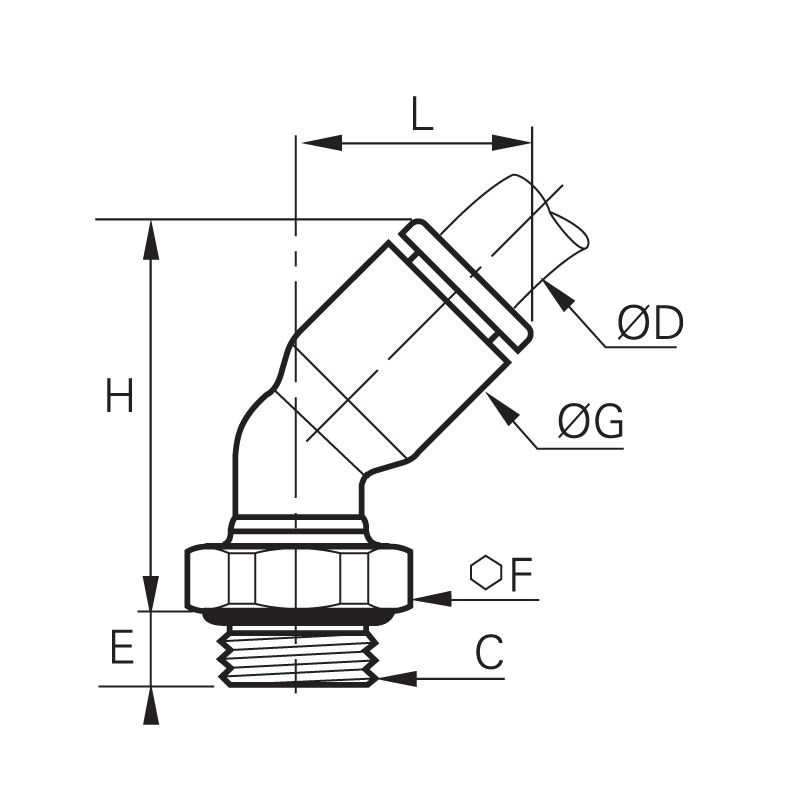

Product name	C	E	ØD	F	G	H	L	Price		Quantity
3133 04 10 45° stud elbow	G1/8"	4,5	4 mm	13	9	20,5	13	€4.68	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 04 19 45° stud elbow	M5x0,8	3,5	4 mm	8	9	23	13	€5.33	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 06 10 45° stud elbow	G1/8"	4,5	6 mm	13	11	24	14,5	€4.70	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 06 13 45° stud elbow	G1/4"	5,5	6 mm	16	11	24	14,5	€5.81	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 06 19 45° stud elbow	M5x0,8	3,5	6 mm	8	11	28	14,5	€5.30	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 08 10 45° stud elbow	G1/8"	4,5	8 mm	13	13,5	31	19,5	€5.72	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 08 13 45° stud elbow	G1/4"	5,5	8 mm	16	13,5	29	19,5	€6.00	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 08 17 45° stud elbow	G3/8"	5,5	8 mm	20	13,5	29	19,5	€7.79	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 10 13 45° stud elbow	G1/4"	5,5	10 mm	16	16	35	23	€7.60	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 10 17 45° stud elbow	G3/8"	5,5	10 mm	20	16	33,5	23	€8.97	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 10 21 45° stud elbow	G1/2"	7	10 mm	24	16	33,5	23	€10.97	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 12 13 45° stud elbow	G1/4"	5,5	12 mm	16	19	40,5	26	€10.59	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 12 17 45° stud elbow	G3/8"	5,5	12 mm	20	19	39	26	€11.30	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3133 12 21 45° stud elbow	G1/2"	7	12 mm	24	19	39	26	€13.04	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3133 - 45° Male stud elbows"

Connection of tubing at a 45° angle to a threaded port. For use when stud or 90° fittings put pressure on tubing bend radius. solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Special feature:	schwenkbar
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
