3129 - Extended Male stud elbows

LF 3000 standard pneumatic, Extended Male stud elbows, Engineered polymer

From €6.02 *

Available, delivery time:

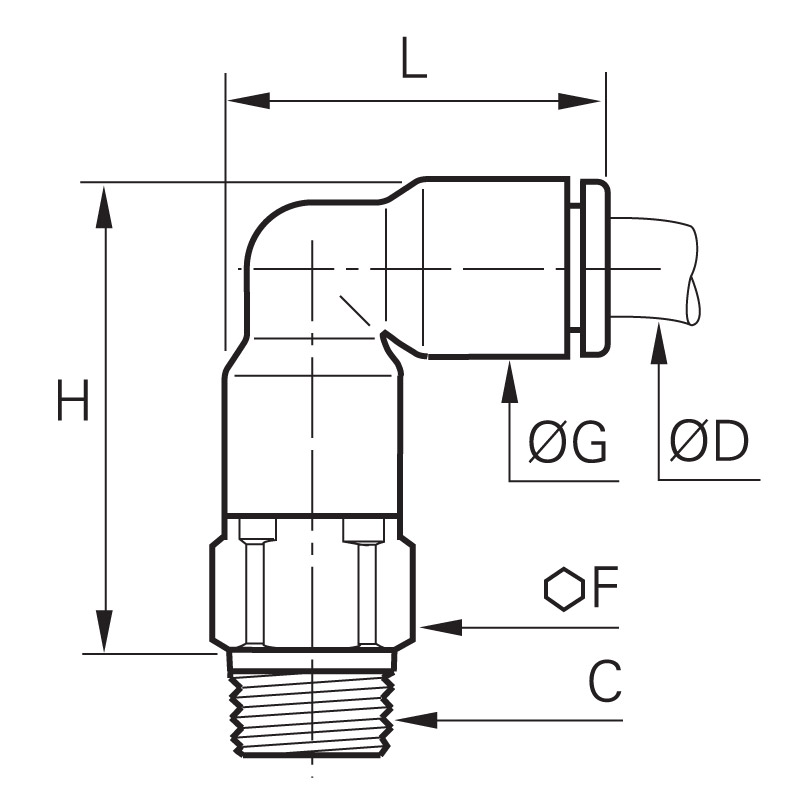

Product name	C	ØD	F	G	H	L	Price		Quantity
3129 04 10 Extended stud elbow	R1/8"	4 mm	10	8,5	23	19	€6.02	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 04 13 Extended stud elbow	R1/4"	4 mm	14	8,5	23,5	19	€7.63	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 06 10 Extended stud elbow	R1/8"	6 mm	10	10,5	27	22,5	€6.62	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 06 13 Extended stud elbow	R1/4"	6 mm	14	10,5	27,5	22,5	€8.03	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 08 10 Extended stud elbow	R1/8"	8 mm	13	13,5	34,5	29,5	€8.89	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 08 13 Extended stud elbow	R1/4"	8 mm	14	13,5	32,5	29,5	€9.16	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 08 17 Extended stud elbow	R3/8"	8 mm	17	13,5	33	29,5	€9.92	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 10 13 Extended stud elbow	R1/4"	10 mm	15	16	39,5	34,5	€11.01	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 10 17 Extended stud elbow	R3/8"	10 mm	17	16	39,5	34,5	€12.16	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 10 21 Extended stud elbow	R1/2"	10 mm	21	16	39,5	34,5	€12.47	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 12 13 Extended stud elbow	R1/4"	12 mm	19	19	45,5	40,5	€11.10	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 12 17 Extended stud elbow	R3/8"	12 mm	19	19	45,5	40,5	€12.82	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 12 21 Extended stud elbow	R1/2"	12 mm	21	19	45,5	40,5	€13.79	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 14 17 Extended stud elbow	R3/8"	14 mm	21	22	51,5	46,5	€14.64	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 14 21 Extended stud elbow	R1/2"	14 mm	21	22	51,5	46,5	€15.03	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3129 56 14 Extended stud elbow	NPT1/4"	1/4"	14	10,922	27,432	23,622	€9.64	This article is currently not available!

Product information "3129 - Extended Male stud elbows"

Connection of tubing at a 90° angle. Height dimensions are designed to pass over a 3109 elbow. solid construction, aesthetic and unobtrusive for a better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.

Special feature:	schwenkbar
Seal coating:	PTFE
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
