3121 - Stud standpipes

LF 3000 standard pneumatic, Stud standpipes, Engineered polymer

From €3.81 *

Available, delivery time:

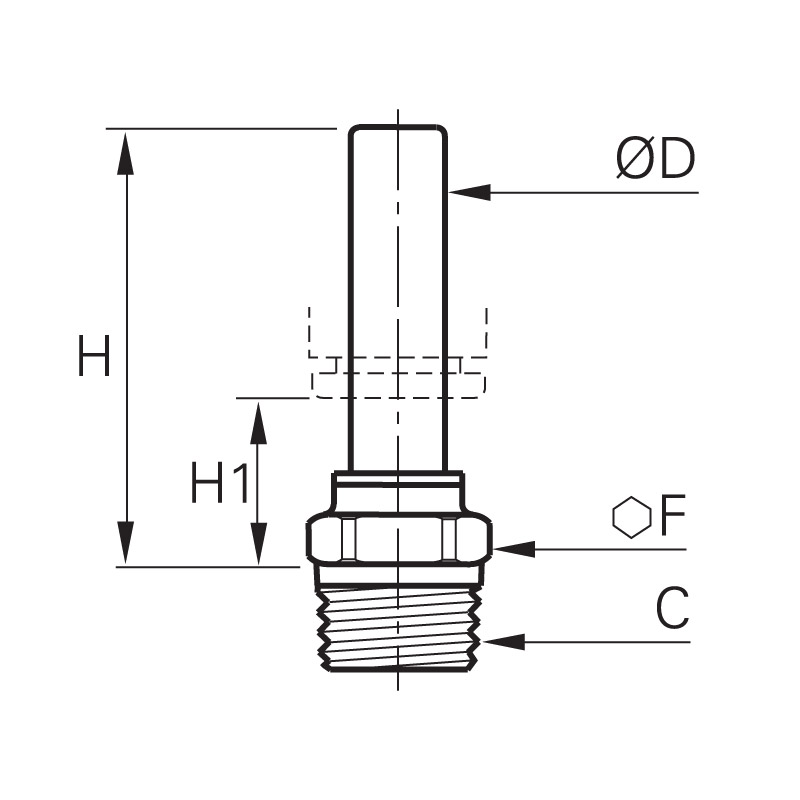

Product name	C	ØD	F	H	H1	Price		Quantity
3121 04 10 Stud standpipe	R1/8"	4 mm	10	26	14	€3.81	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 04 13 Stud standpipe	R1/4"	4 mm	14	26,5	14,5	€4.80	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 06 10 Stud standpipe	R1/8"	6 mm	10	28	14	€3.83	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 06 13 Stud standpipe	R1/4"	6 mm	14	28,5	14,5	€5.25	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 08 10 Stud standpipe	R1/8"	8 mm	10	29,5	11	€5.45	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 08 13 Stud standpipe	R1/4"	8 mm	14	28,5	10	€5.70	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 08 17 Stud standpipe	R3/8"	8 mm	17	28,5	10	€4.27	This article is currently not available!
3121 10 13 Stud standpipe	R1/4"	10 mm	15	36	15,5	€5.81	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 10 17 Stud standpipe	R3/8"	10 mm	17	36	15,5	€6.09	Available in 45 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 10 21 Stud standpipe	R1/2"	10 mm	21	36	15,5	€7.19	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 12 17 Stud standpipe	R3/8"	12 mm	17	36,5	12	€6.59	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 12 21 Stud standpipe	R1/2"	12 mm	21	36,5	12	€8.25	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3121 14 21 Stud standpipe	R1/2"	14 mm	21	41	13,5	Price on request	This article is currently not available!

Product information "3121 - Stud standpipes"

stud coupling for millimeter pipes. solid construction, aesthetic and unobtrusive for a better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Seal coating:	PTFE
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
