Product information "3118 04 19 Single banjo connection"

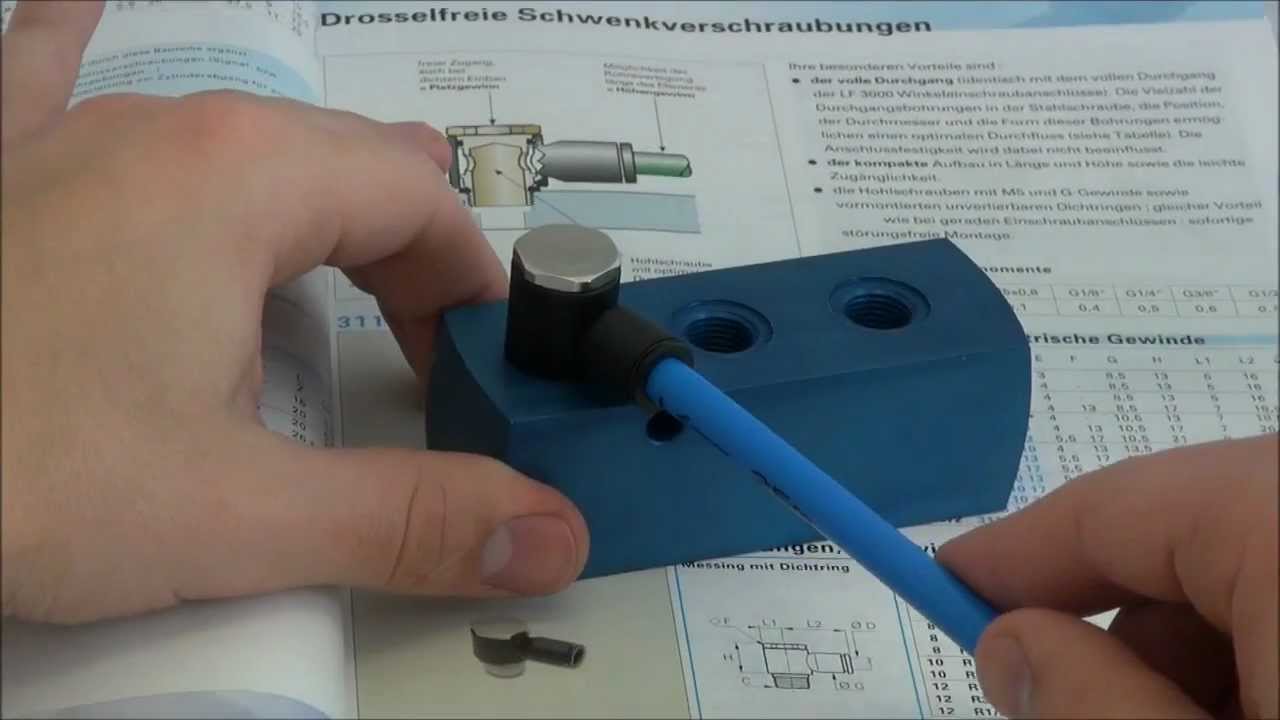

Connection of tubing at a 90° angle to a threaded port. Tightened on the top of the fitting with a flat spanner or socket wrench to facilitate assembly in tight spaces. The tube outlet can be orientated during assembly. - solid construction - full air flow, - individual unit quality control and dating in order to guarantee quality and traceability, - RoHS and ISO 14743.
Weight in kg:
0,004
Material:
Engineered polymer
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material adjusting spindle:
Brass nickel plated
Material body:
Engineered polymer
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
