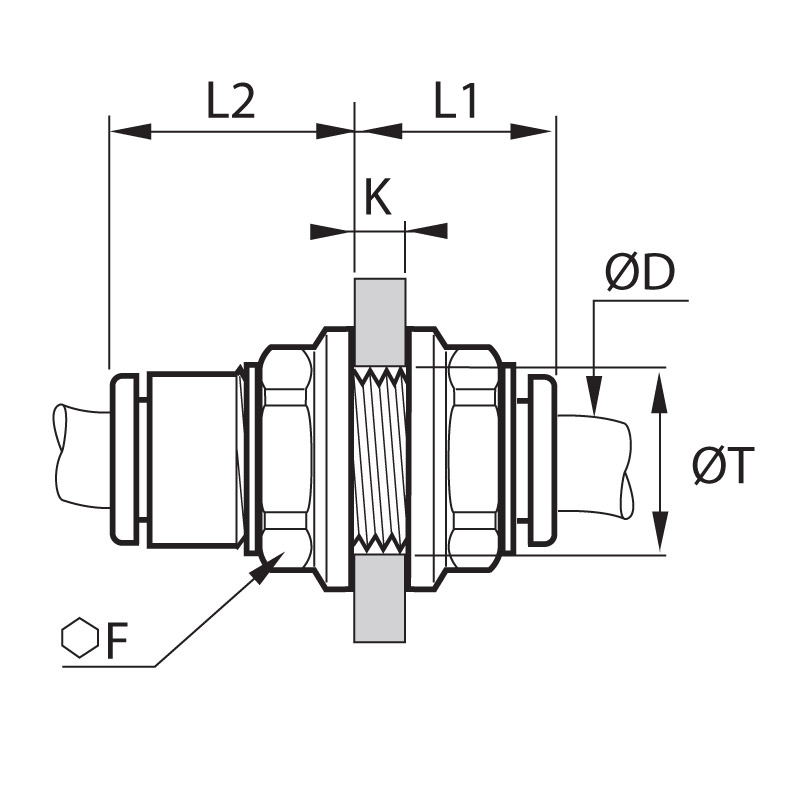

Connects 2 tubes through a panel, providing optimum sealing between the fitting and the panel. Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Material seal: | NBR |
| Material body: | Engineered polymer |
| Material stem: | Engineered polymer |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
