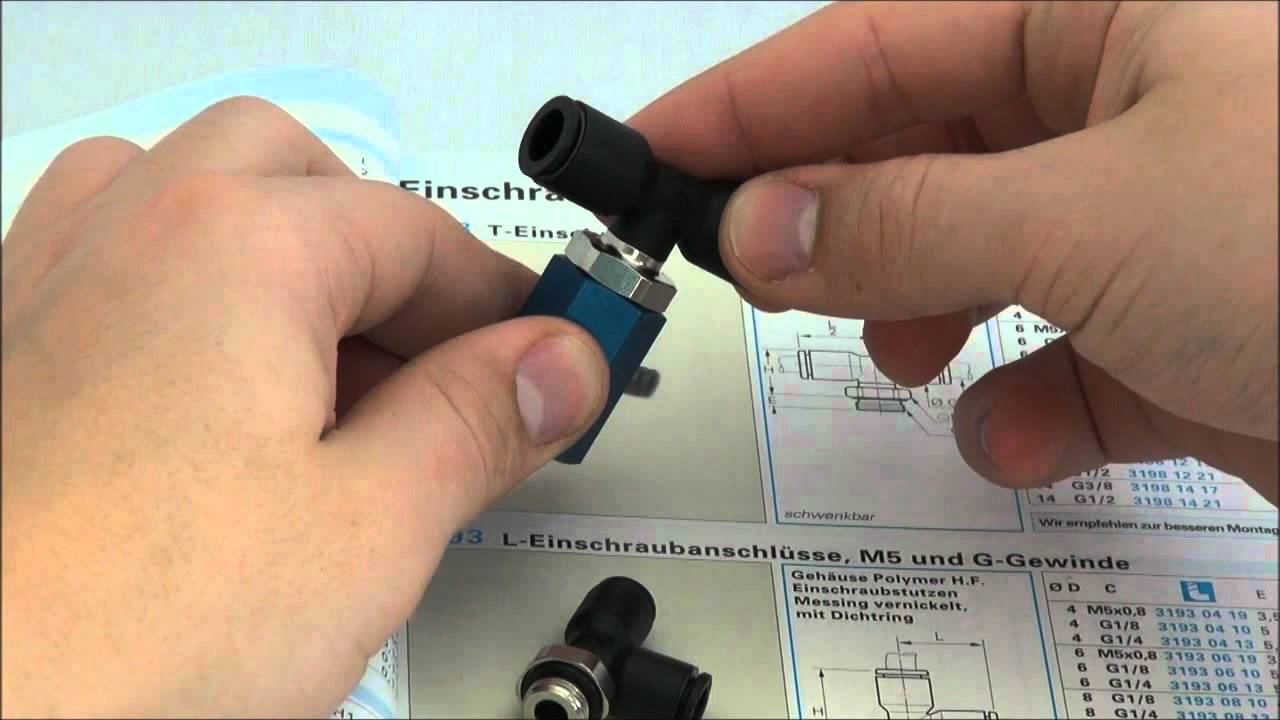

Connection of 2 tubes at a 90° angle to a threaded port. Solid construction, compact, aesthetic and unobtrusive for better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Maximum working pressure in bar: | 20 |
| Seal coating: | PTFE |
| Material seal: | NBR |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
| Weight in kg: | 0,016 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
