3107 - Equal and unequal crosses

LF 3000 standard pneumatic, Equal and unequal crosses, Engineered polymer

From €10.07 *

Available, delivery time:

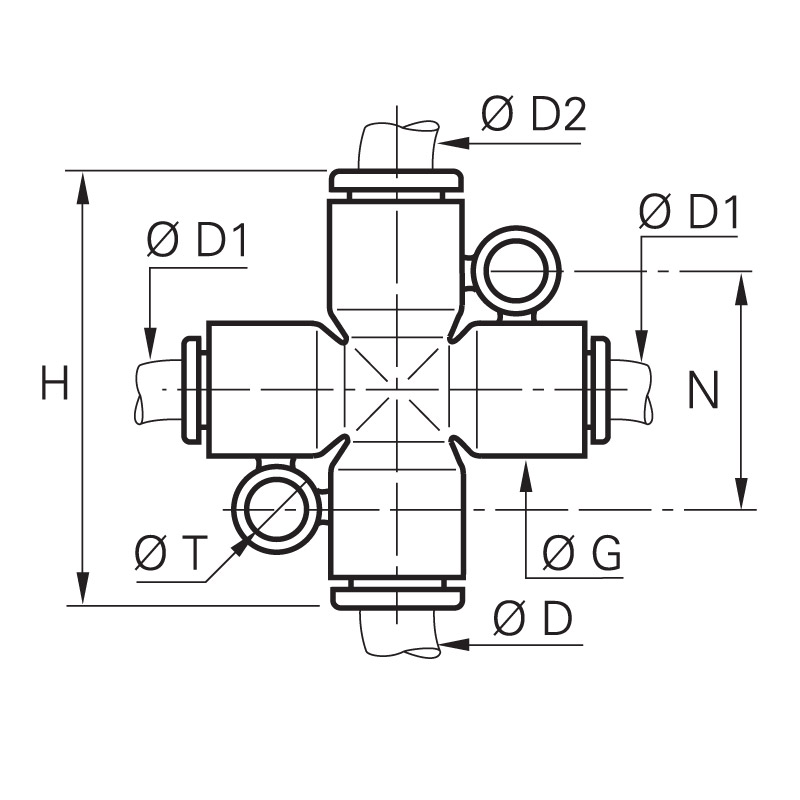

Product name	ØD	ØD1	ØD2	G	H	N	T	Price		Quantity
3107 04 00 Equal and unequal cross	4 mm	4 mm	4 mm	11	36	20	4,2	€11.21	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 04 06 Equal and unequal cross	6 mm	4 mm	6 mm	11	36	20	4,2	€12.71	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 06 00 Equal and unequal cross	6 mm	6 mm	6 mm	11	36	20	4,2	€10.07	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 06 04 Equal and unequal cross	4 mm	4 mm	6 mm	11	36	20	4,2	€14.67	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 06 08 Equal and unequal cross	8 mm	6 mm	8 mm	11	46	22,5	4,2	€12.86	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 08 00 Equal and unequal cross	8 mm	8 mm	8 mm	13,5	46	22,5	4,2	€10.70	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3107 08 06 Equal and unequal cross	6 mm	6 mm	8 mm	13,5	46	22,5	4,2	€13.09	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3107 - Equal and unequal crosses"

Distribution of air between 4 tubes at a 90° angle. Can be fixed into position by the use of 2 screws. solid construction. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
