3103 - Stud run tee

LF 3000 standard pneumatic, Stud run tee, Engineered polymer

From €5.91 *

Available, delivery time:

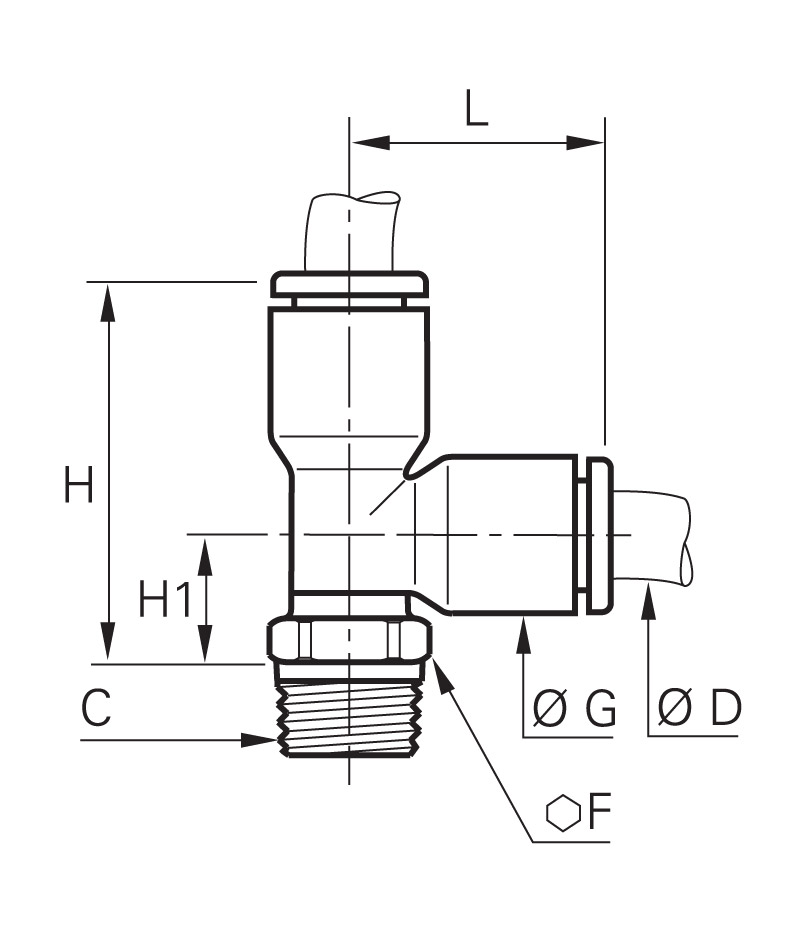

Product name	C	ØD	F	G	H	H1	L	Price		Quantity
3103 04 10 L-stud coupling	R1/8"	4 mm	10	8,5	23,5	9	14,5	€5.91	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 04 13 L-stud coupling	R1/4"	4 mm	14	8,5	24	9,5	14,5	€6.82	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 06 10 L-stud coupling	R1/8"	6 mm	10	10,5	27,5	10	17,5	€6.07	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 06 13 L-stud coupling	R1/4"	6 mm	14	10,5	28	10,5	17,5	€7.29	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 08 10 L-stud coupling	R1/8"	8 mm	10	13,5	35	12	23	€7.87	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 08 13 L-stud coupling	R1/4"	8 mm	14	13,5	34	11	23	€7.64	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 08 17 L-stud coupling	R3/8"	8 mm	17	13,5	34	11	23	€10.69	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 10 13 L-stud coupling	R1/4"	10 mm	15	16	40,5	14	26,5	€11.40	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 10 17 L-stud coupling	R3/8"	10 mm	17	16	40,5	14	26,5	€12.99	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 10 21 L-stud coupling	R1/2"	10 mm	21	16	40,5	14	26,5	€14.16	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 12 13 L-stud coupling	R1/4"	12 mm	15	19	46,5	15,5	31	€12.98	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 12 17 L-stud coupling	R3/8"	12 mm	17	19	46,5	15,5	31	€14.02	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 12 21 L-stud coupling	R1/2"	12 mm	21	19	46,5	15,5	31	€14.71	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 14 17 L-stud coupling	R3/8"	14 mm	20	22	55	19,5	35,5	Price on request	This article is currently not available!
3103 14 21 L-stud coupling	R1/2"	14 mm	24	22	52,5	17,5	35,5	€19.59	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 16 17 L-stud coupling	R3/8"	16 mm	27	27	78	27	38,5	€24.55	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 16 21 L-stud coupling	R1/2"	16 mm	27	27	78	27	38,5	€25.16	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 56 14 L-stud coupling	NPT1/4"	1/4"	14	10,922	28,448	10,414	17,526	€8.13	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3103 60 18 L-stud coupling	NPT3/8"	3/8"	18	16,002	40,640	13,970	26,416	Price on request	This article is currently not available!

Product information "3103 - Stud run tee"

In line connection of 2 tubes at a 90° angle with a male thread. Solid construction, compact, aesthetic and unobtrusive for better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Special feature:	schwenkbar
Seal coating:	PTFE
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
