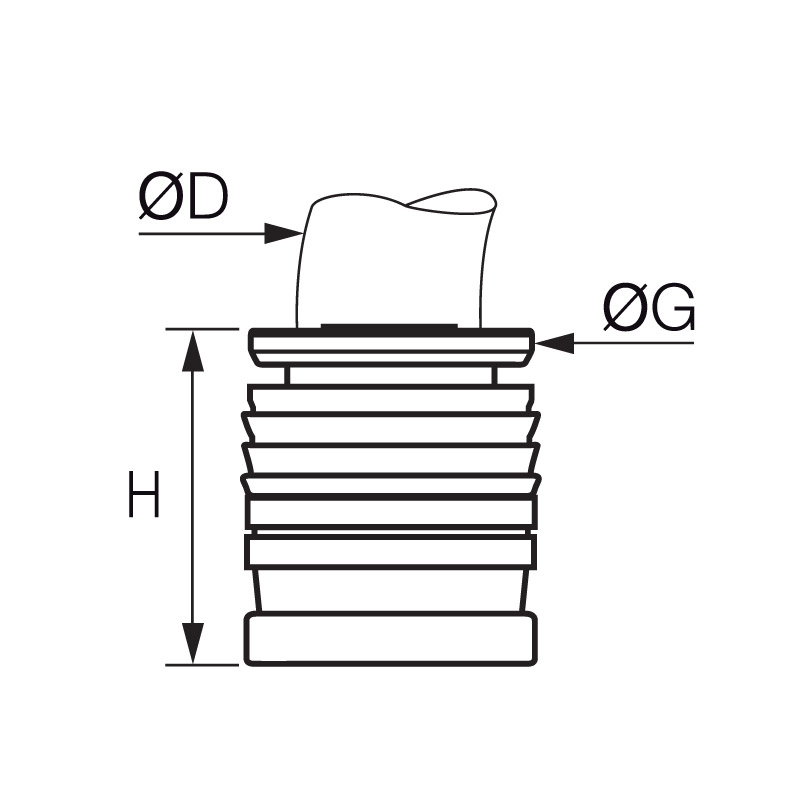

In line connection of tubing to a threaded port within a customised assembly. The assembly block must include cavities into which the cartridge can be fitted. Pre-greased and protected seal prior to assembly. Self-centring of the cartridge within the cavity. Suitable for automatic processes. Complies RoHS and ISO 14743.
| Material seal: | NBR |
| Material body: | Brass |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Brass |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
