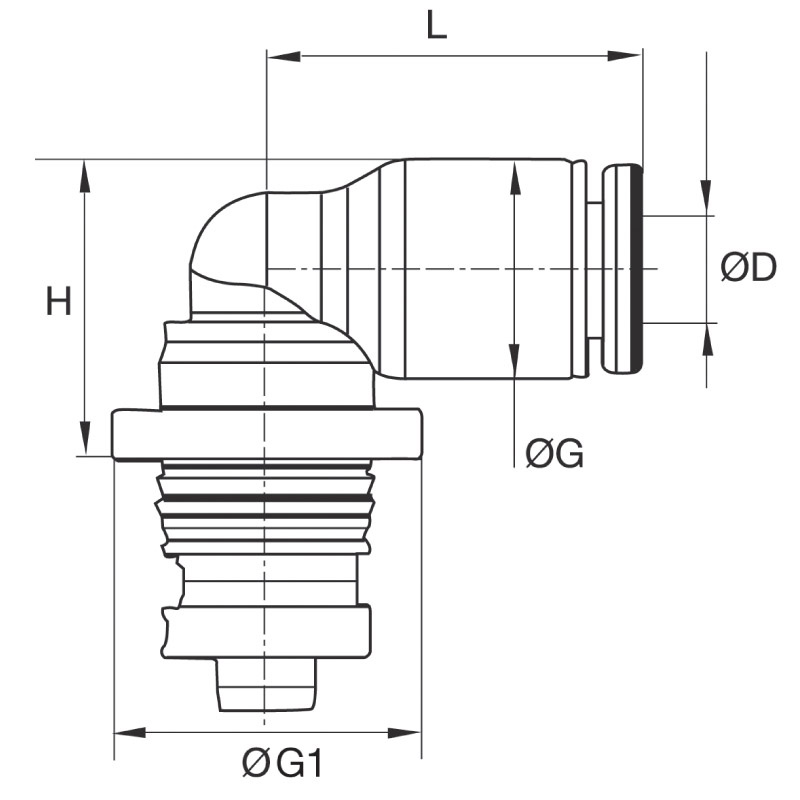

Connection of tubing at a 90° angle to a customised assembly with cavities prepared for the insertion of cartridges.
- Easier installation of components and assemblies.
- No thread to machining in your housing.
- Possibility of having different tube diameters for only one cavity diameter.
- Individual unit quality control and dating in order to guarantee quality and traceability.
- Vacuum capability
- ROHS.
- Easier installation of components and assemblies.
- No thread to machining in your housing.
- Possibility of having different tube diameters for only one cavity diameter.
- Individual unit quality control and dating in order to guarantee quality and traceability.
- Vacuum capability
- ROHS.
| Material seal: | NBR |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
