3088 - Polymer cartridges Quick-Fitting - equal tee

Carstick cartridges, Polymer cartridges Quick-Fitting - equal tee, Engineered polymer

From €10.81 *

Available, delivery time:

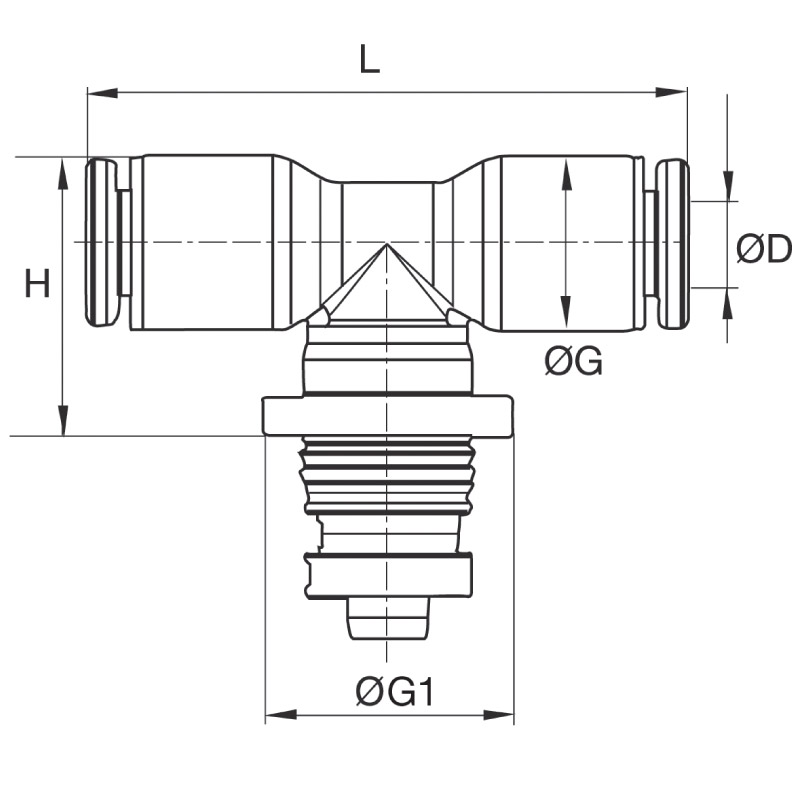

Product name	ØD	G	G1	H	L	Bohrung Ø in mm	Price
3088 04 04 Equal tee	4 mm	9	12,5	14	30	4	Price on request	This article is currently not available!
3088 04 06 Equal tee	4 mm	8,6	12,5	12,5	29,5	6	Price on request	This article is currently not available!
3088 06 06 Equal tee	6 mm	11	12,5	14,5	34	6	Price on request	This article is currently not available!
3088 06 08 Equal tee	6 mm	10,6	14,5	15	33,5	8	Price on request	This article is currently not available!
3088 08 08 Equal tee	8 mm	14	14,5	19	46	8	Price on request	This article is currently not available!
3088 08 10 Equal tee	8 mm	14	19	19	46	10	Price on request	This article is currently not available!
3088 10 10 Equal tee	10 mm	16	19	21	53	10	Price on request	This article is currently not available!
3088 10 12 Equal tee	10 mm	16	20	21	53	12	Price on request	This article is currently not available!
3088 12 12 Equal tee	12 mm	19	20	24	61	12	Price on request	This article is currently not available!

Product information "3088 - Polymer cartridges Quick-Fitting - equal tee"

Connection of 2 tubes at a 90° angle to a customised assembly with cavities prepared for the insertion of cartridges.
- Easier installation of components and assemblies.
- No thread to machining in your housing.
- Possibility of having different tube diameters for only one cavity diameter.
- Individual unit quality control and dating in order to guarantee quality and traceability.
- Vacuum capability
- ROHS.

Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel
