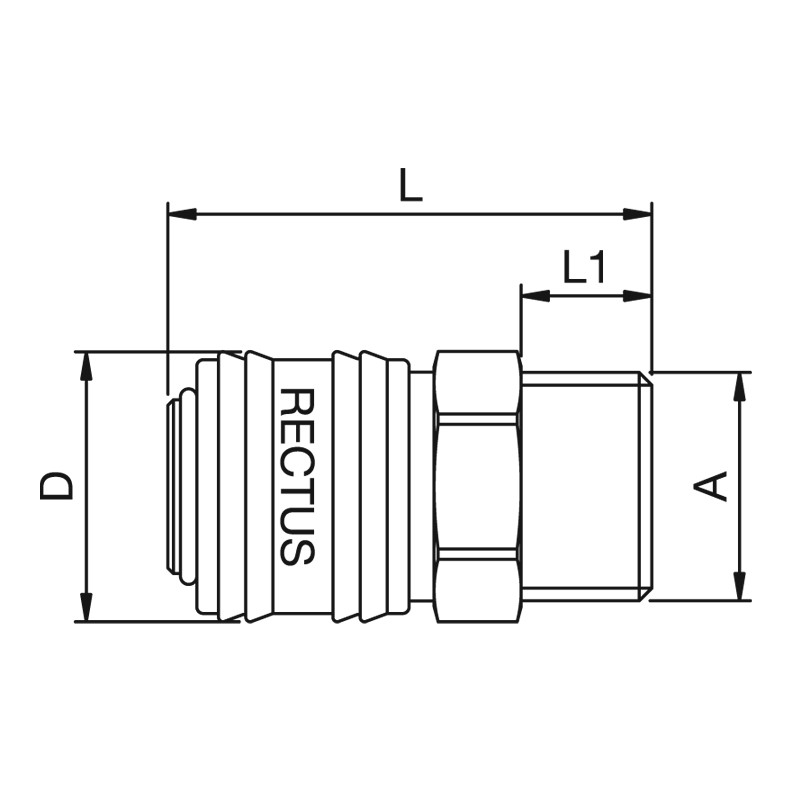

Product information "26KAAW13MPX Quick coupling with male thread"
Universal brass coupling with European standardindustrial profile.Coupling system with single-hand operation andstandard-valve. Small mass size. The ergonomicsleeve design prevents dirt on the valve body.
Shut-off:
Quick coupling Single Shut-Off
Connection:
Male thread 1/4"
Connection description:
Male pipe thread of Whitworth form ISO 228 1/4"
Connection type:
Male thread
Suitable breath / respiratory protection:
No
Seal:
NBR
Seal description:
Nitrite-butadiene rubber
Working pressure:
35 bar maximum static working pressure with safety factor 4 to 1.
Pressure eliminator:
No
Single-hand operation:
Yes
Self-venting coupling:
No
Flat-sealing:
No
Mould coupling:
No
Weight in kg:
0,073
Hydraulics:
No
Compatibility:
RECTUS 25
RECTUS 1600/1625
TEMA 1600
Ball locking:
No
Material:
Brass
Material description:
Brass CuZn39Pb3 2.0401 (except sleeve)
Bore area in mm²:
40
Bore in mm:
7,2
Surface:
blank finish
Pneumatics:
Yes
Professional recommendation:
Pneumatic standard
Series:
26
Series long:
26KA
Safety locking system:
No
Standard product:
Yes
Pin lock:
Yes
Working temperature:
-20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium.
Ultra-FLO-valve:
No
Vacuum suitable:
Yes
Advantages:
One-hand operation. European standard.
Water-resistant:
Yes
Material connection:
Brass
Material seal:
Perbunan®
Material sleeve:
Brass
Material spring snap ring:
stainless steel AISI 301
Material balls/pins:
Stainless steel AISI 420
Material valve:
Brass
Material valve body:
Brass
Two-hand operation:
No
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
