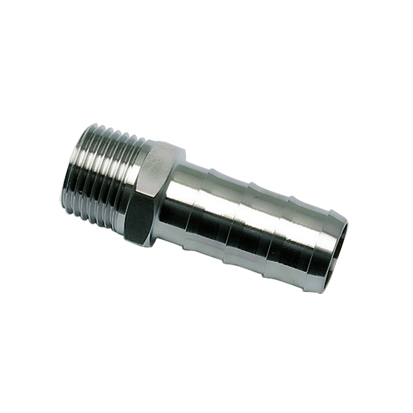

Product information "1823 56 11 Tailpiece adaptor for rubber hose"

Quick connection of a hose to a male port. Stainless steel construction features excellent chemical resistance to aggressive fluids and environments. Available in 6 to 18 mm o.d..
Weight in kg: 0,01
Maximum working pressure in bar: 150
max. temperature in °C: 180
min. temperature in °C: -20
RoHS compliant: Yes
Material body: Stainless steel 316l
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

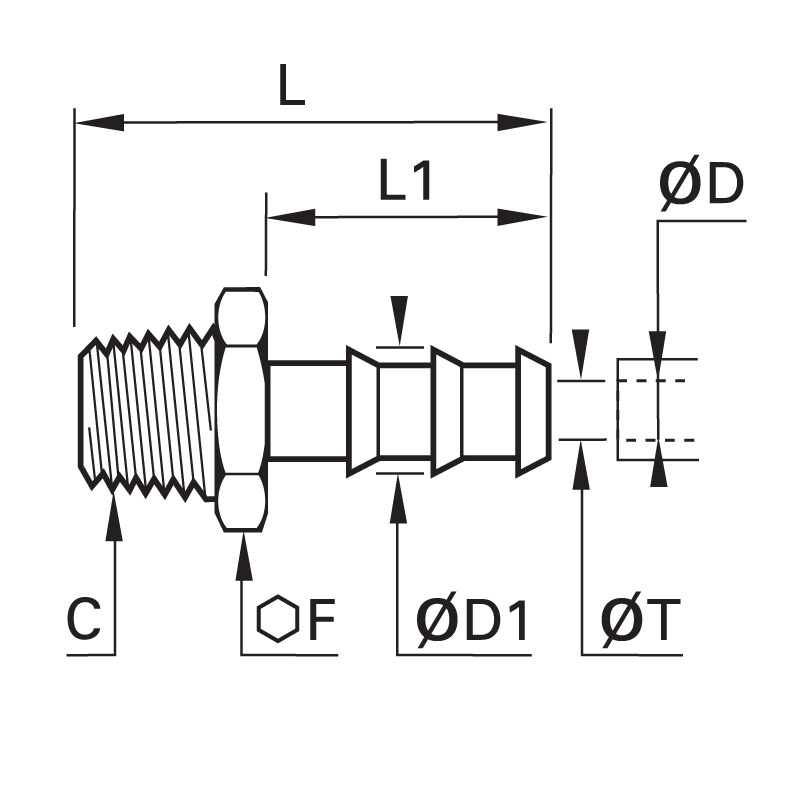

Technische Zeichnung 1823 56 14
C: NPT1/8"
F: 12
L: 34
L1: 22,5
ØD: 1/4"
ØD1: 8,3 mm
T: 5,3
