1814 - Male stud couplings

Compression fittings Stainless steel, Male stud couplings

From €46.70 *

Available, delivery time:

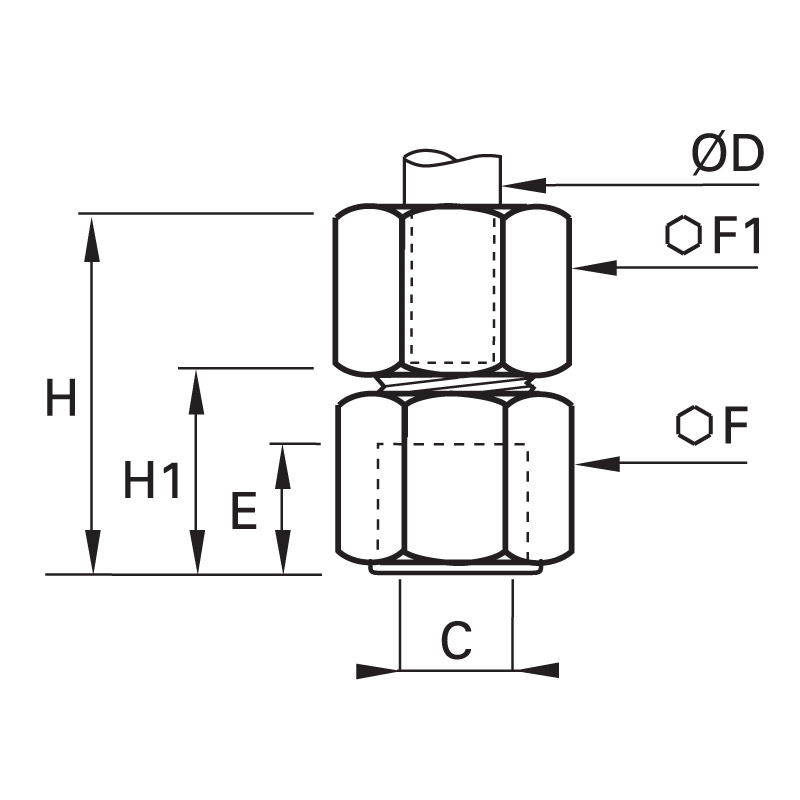

Product name	C	E	ØD	F	F1	H max	H1	Price		Quantity
1814 06 10 Male stud coupling	G1/8"	7,5	6 mm	14	13	29	17	€46.70	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 06 13 Male stud coupling	G1/4"	11	6 mm	17	13	29	21	€46.83	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 08 13 Male stud coupling	G1/4"	11	8 mm	17	14	34,5	20,5	€50.49	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 10 17 Male stud coupling	G3/8"	11,5	10 mm	22	19	38,5	22	€53.19	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 10 21 Male stud coupling	G1/2"	15	10 mm	27	19	43	26,5	€55.06	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 12 17 Male stud coupling	G3/8"	11,5	12 mm	22	22	39	22	€52.56	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 12 21 Male stud coupling	G1/2"	15	12 mm	27	22	43,5	26,5	€56.92	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1814 16 21 Male stud coupling	G1/2"	15	16 mm	27	27	45	26	€69.46	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "1814 - Male stud couplings"

In line connection of tubing to a threaded port mit einem male thread-connection. Available from 4 to 16 mm o.d., mit BSPP thread. Available from 4 to 16 mm o.d. and G-threads.

Material:	Stainless steel 316l
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Stainless steel 316l
Material gripping ring:	Stainless steel 316l
Material union nut:	Stainless steel 316l

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Catalog excerpt
