0695 - Push-in-Fitting with protection spring

Accessories for hoses, Push-in-Fitting with protection spring, Brass nickel plated

From €35.14 *

Available, delivery time:

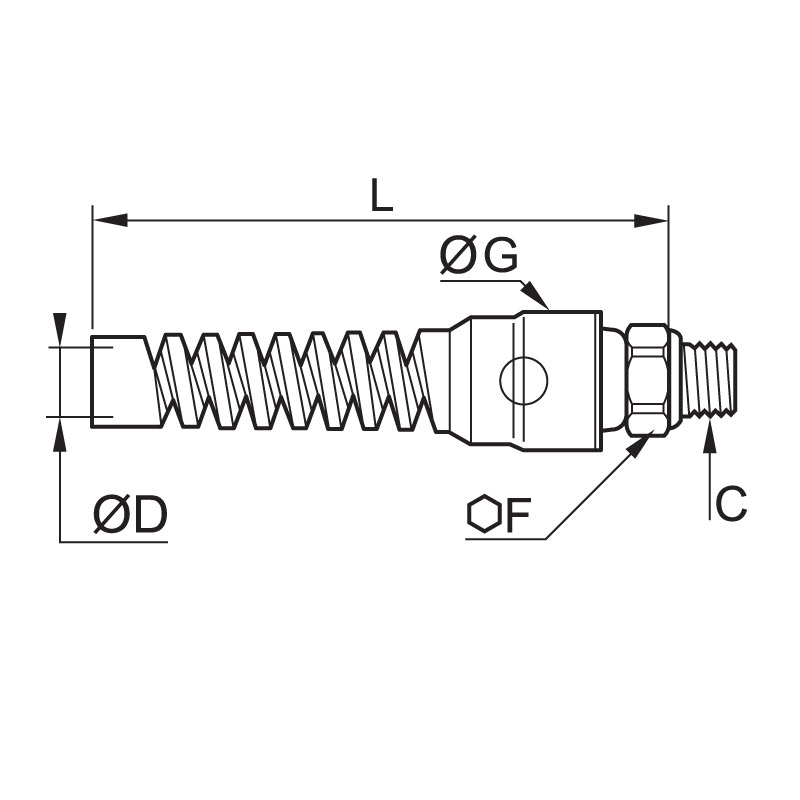

Product name	C	ØD	F	G	L	Price		Quantity
0695 08 13 Push-in-fitting	R1/4"	8 mm	14	24	104,5	€35.14	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0695 10 13 Push-in-fitting	R1/4"	10 mm	18	24	106,5	€36.66	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
0695 12 17 Push-in-fitting	R3/8"	12 mm	20	29,5	126	€41.47	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "0695 - Push-in-Fitting with protection spring"

Guarantees long-term connection thanks to the retention of the tube by the protection ring.
Enables tube length adjustment or disconnection without thread disassembly thanks to the push-in connection design of the protection spring.

Material:	Brass nickel plated
max. temperature in °C:	60
min. temperature in °C:	-20
RoHS compliant:	Yes
Material seal:	NBR
Material spring:	Engineered polymer
Material body:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
