0658 66 13 Blowgun

Polymer-blowgun with standard nozzle, NW 2,5, connection G1/4
This product is currently not available.
€27.73 *

Prices incl. VAT plus shipping costs

Delivery time on request

This kit provides a powerful and progressive air jet with ergonomic design. This blowgun with... more
Product information "0658 66 13 Blowgun"
This kit provides a powerful and progressive air jet with ergonomic design. This blowgun with ander body air supply connection point and removable nozzle is ready to use..
Bore in mm: 2,5
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
min. temperature in °C: -15
max. temperature in °C: 50
RoHS compliant: Yes
Weight in kg: 0,195

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

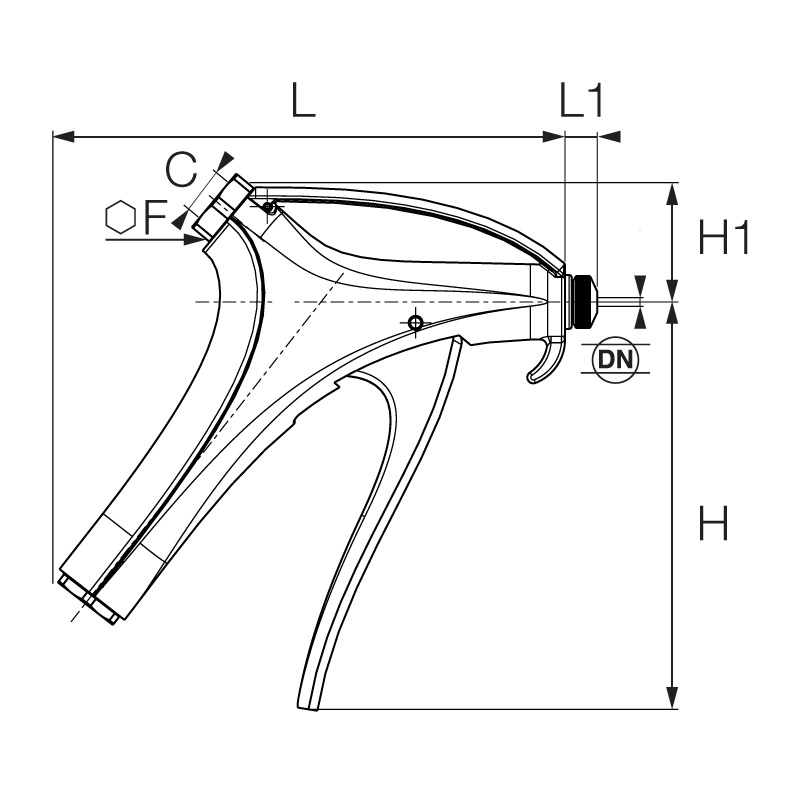

Technische Zeichnung 0658 66 13
C: G1/4"
F: 20
H: 117
H1: 37
L: 145
L1: 10
