0657 66 13 Blowgun

Safety blowgun kit with angled tube nozzle (short), NW 2,5, connection G1/4
This product is currently not available.
€42.25 *

Prices incl. VAT plus shipping costs

Delivery time on request

Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and... more
Product information "0657 66 13 Blowgun"

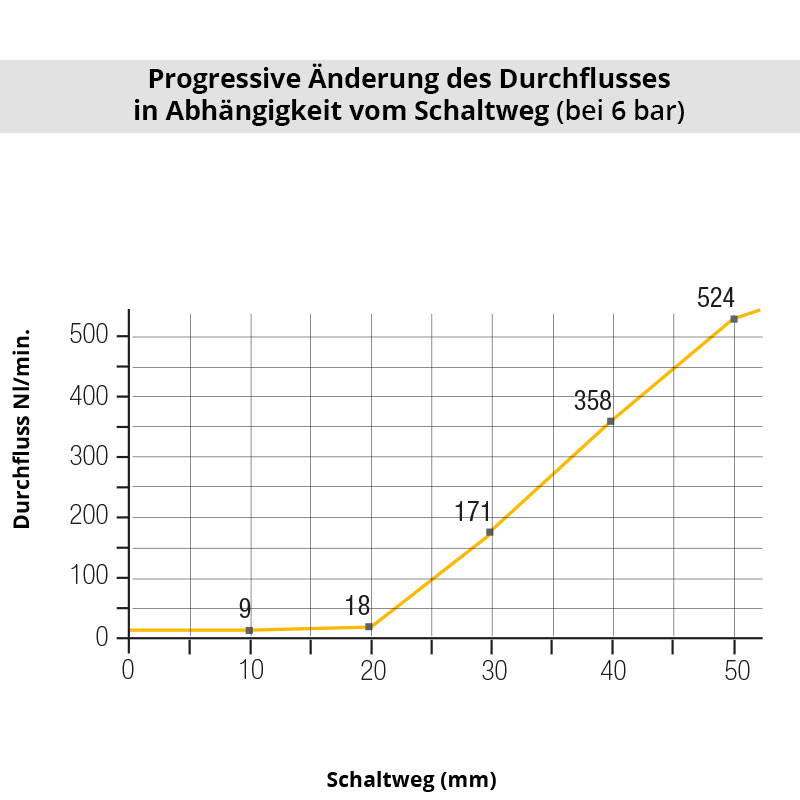

Easy and ready to use with a 4m long recoil tubing, this kit combines progressive action and ergonomic design. This blowgun is designed with an upper body air supply connection point and a removeable angled tube nozzle (short) providing a powerful and progressive air jet. It is an ideal choice where access is restricted since the nozzle can be rotated through 360°.
Bore in mm: 2,5
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
min. temperature in °C: -15
max. temperature in °C: 50
RoHS compliant: Yes
Weight in kg: 0,168

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

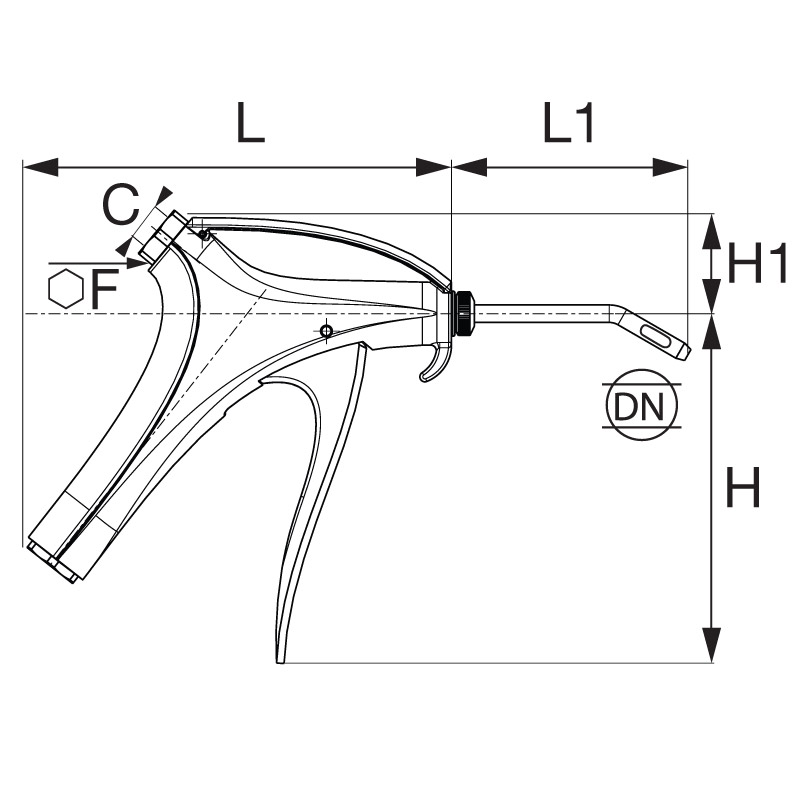

Technische Zeichnung 0657 66 13
C: G1/4"
F: 20
H: 117
H1: 37
L: 145
L1: 82
