0654 00 13 Blowgun

Safety blowgun kit, NW 3, connection G1/4
€59.33 *

Prices incl. VAT plus shipping costs

Delivery time: 3-4 workdays

Sold only in units of 5 pieces.

Total: 59.33 *
Easy and ready to use with a 4m long recoil tubing, this kit combines dynamic progressive action,... more
Product information "0654 00 13 Blowgun"

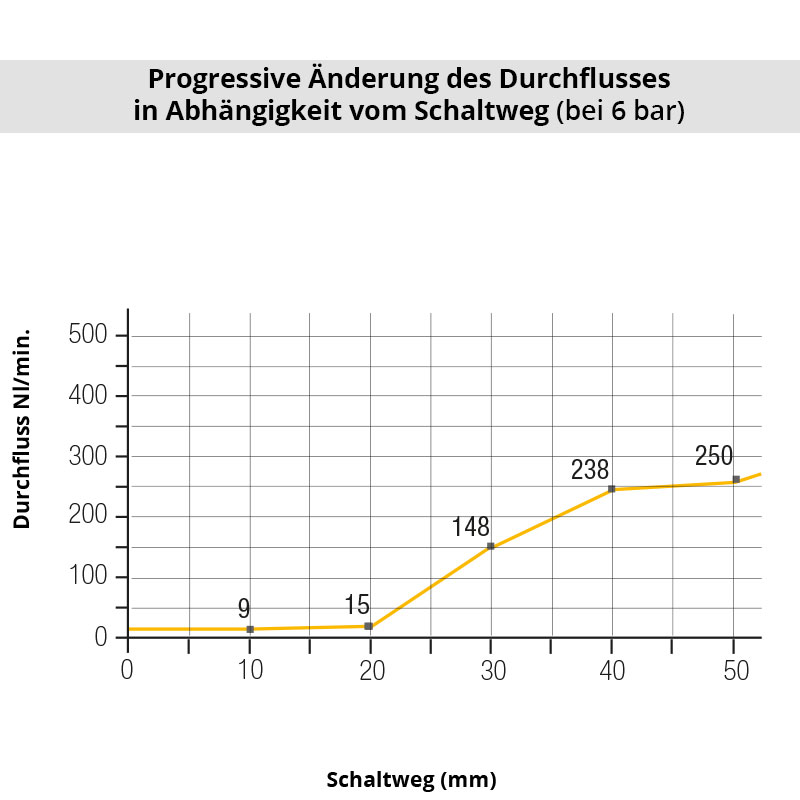

Easy and ready to use with a 4m long recoil tubing, this kit combines dynamic progressive action, safety and ergonomic design. This blowgun ensures the safety of the operator and machinery thanks to an integrated pressure regulator that gives active protection for the user. Meets the legal safety.
Bore in mm: 3
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
min. temperature in °C: -15
max. temperature in °C: 50
RoHS compliant: Yes
Weight in kg: 0,189

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

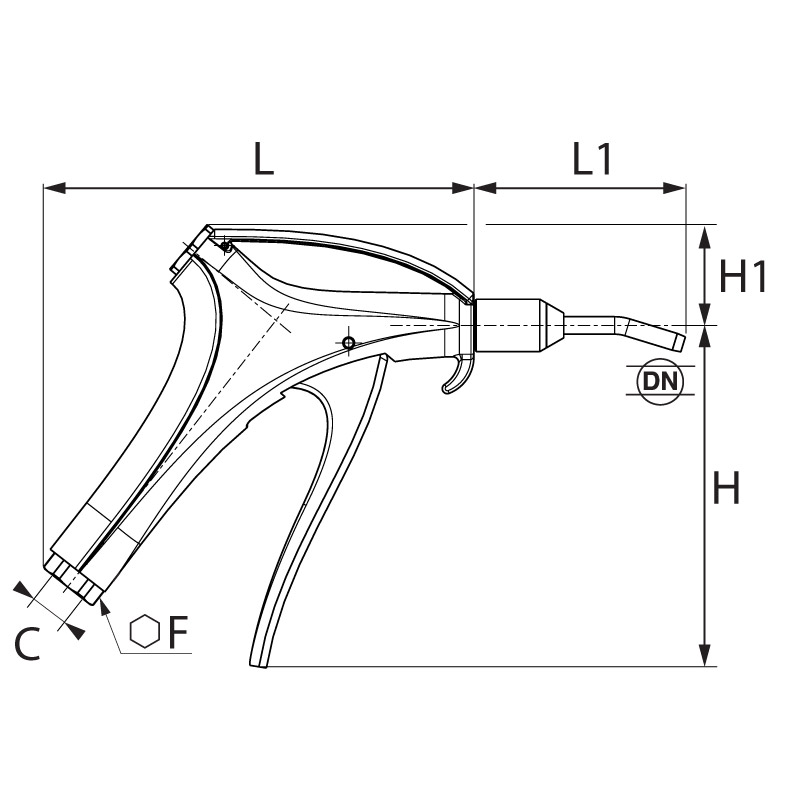

Technische Zeichnung 0654 00 13
C: G1/4"
F: 20
H: 117
H1: 35
L: 148
L1: 73
