0631 00 23 Blowgun

Blowguns, Energy saving-blowgun kit with angled tube, R1/4
€96.26 *

Prices incl. VAT plus shipping costs

Delivery time: 12-13 Workdays

Total: 96.26 *
Combines progressive flow control, safety, energy saving and ergonomy. Conforms with regulations... more
Product information "0631 00 23 Blowgun"
Combines progressive flow control, safety, energy saving and ergonomy. Conforms with regulations of cleaning operations. Its integrated inviolable flow reducer provides full and active safety. The flow reducer system allows for 40% saving in air consumption and guarantees stable flow max 120Nl/min. Can be adapted to all available interchangeable nozzles.
Colour: Green
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,456

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

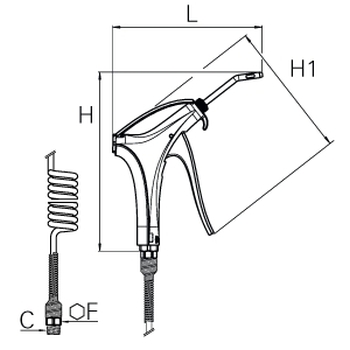

Technische Zeichnung 0631 00 23
Outer coil diameter in mm: 32
Total closed length in m: 850
C: R1/4"
F: 16
H: 195
H1: 148,5
L: 163
Outer diameter: 6 mm
Inner diameter: 4,0 mm
