0631 00 09 Blowgun

Blowguns, blowgun kit, connection below, R1/4
€68.69 *

Prices incl. VAT plus shipping costs

Delivery time: 3-4 workdays

Total: 68.69 *
The standard blowgun with angled nozzle allows a sensitive, smooth flow control and triggering.... more
Product information "0631 00 09 Blowgun"
The standard blowgun with angled nozzle allows a sensitive, smooth flow control and triggering. It also complies the legal safety and hygiene at work.
Colour: blue
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Aluminium treated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,441

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

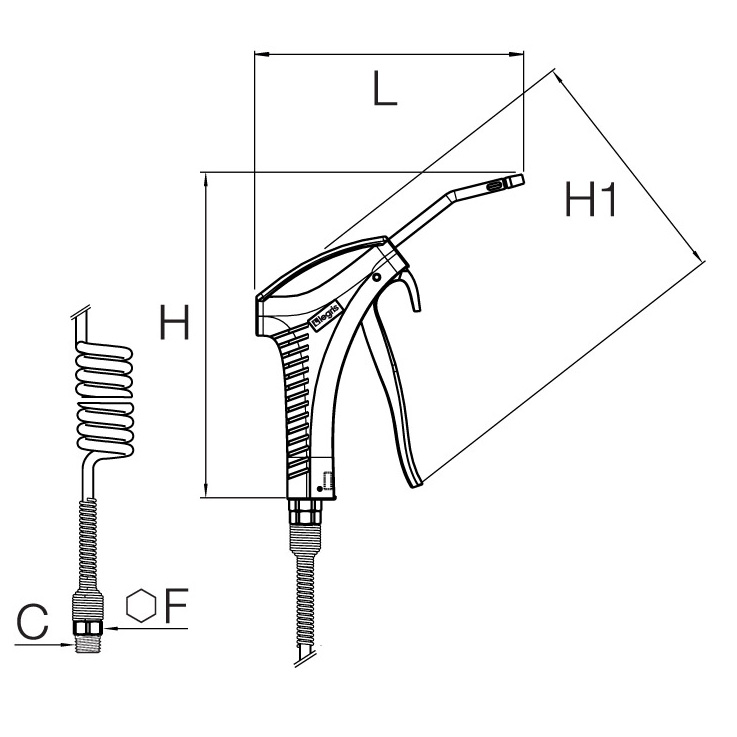

Technische Zeichnung 0631 00 09
Outer coil diameter in mm: 42
Total closed length in m: 400
C: R1/4"
F: 16
H: 192,5
H1: 139,5
L: 152
Outer diameter: 8 mm
Inner diameter: 5,0 mm
