0631 00 08 Blowgun

Blowguns, Energy saving-blowgun kit with interchangeable nozzle, connection below, R1/4
This product is currently not available.
Price on request

Delivery time on request

Call for price
Please enter these characters in the following text field.

Fields with * are required
Combines progressive flow control, safety, energy saving and ergonomy. Conforms with regulations... more
Product information "0631 00 08 Blowgun"
Combines progressive flow control, safety, energy saving and ergonomy. Conforms with regulations of cleaning operations. Its integrated inviolable flow reducer provides full and active safety. The flow reducer system allows for 40% saving in air consumption and guarantees stable flow max 120Nl/min. Can be adapted to all available interchangeable nozzles.
Colour: blue
Maximum working pressure in bar: 10
Material seal: NBR
Material nozzle: Brass nickel plated
Material body: Engineered polymer
Material threaded fitting: Brass nickel plated
Material lever: Engineered polymer
Hose length: 4 m
min. temperature in °C: -15
max. temperature in °C: 50
Material: PU
RoHS compliant: Yes
Weight in kg: 0,496

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

Available downloads:

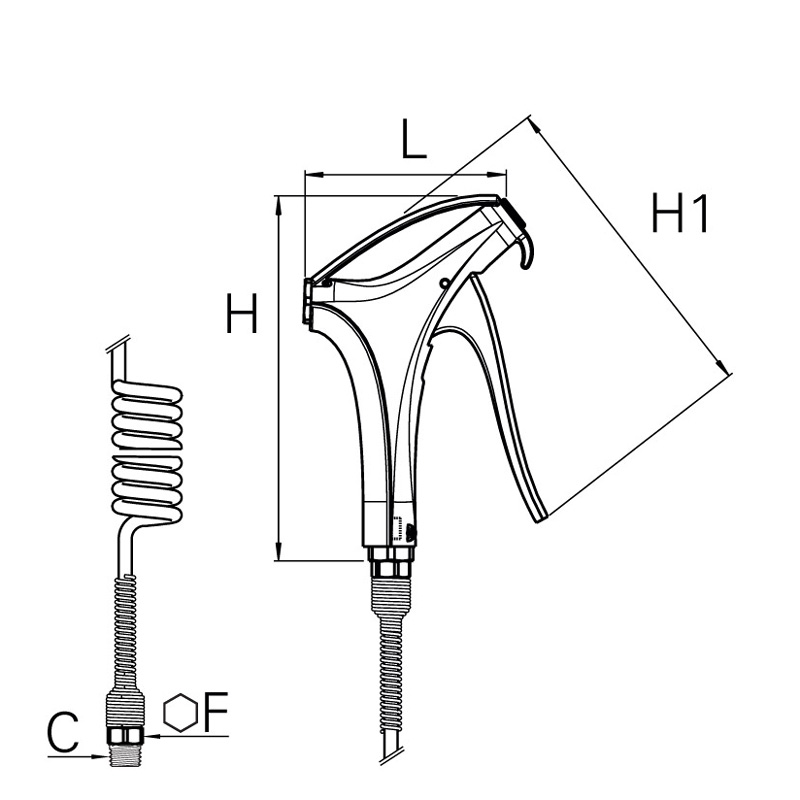

Technische Zeichnung 0631 00 08
Outer coil diameter in mm: 42
Total closed length in m: 400
C: R1/4"
F: 16
H: 163
H1: 148,5
L: 91
Outer diameter: 8 mm
Inner diameter: 5,0 mm
